TFM-130-32-S-D-LC

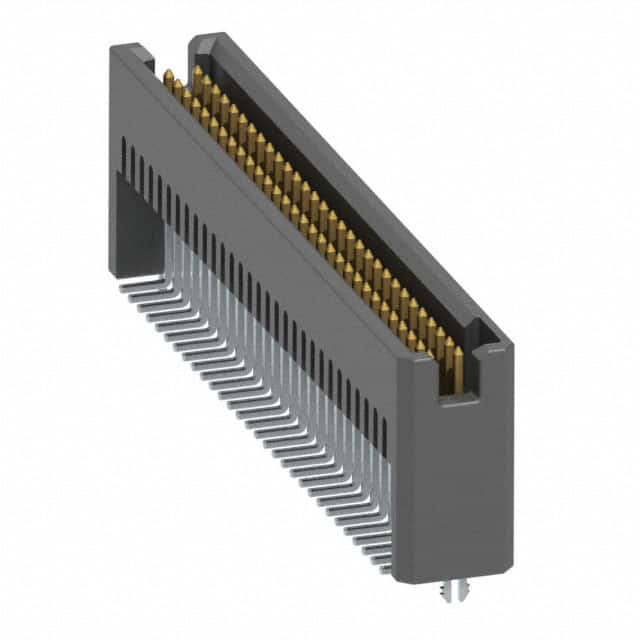

SAMTEC TFM-130-32-S-D-LC Board-To-Board Connector, 1.27mm, 60Contacts, Header, TFM Series, Surface Mount, 2Rows

Connector Header Surface Mount 60 position 0.050" 1.27mm

欧时:
HEADER SMD 60POS 1.27MM

得捷:
CONN HEADER SMD 60POS 1.27MM

艾睿:
As an added safety precaution, the shrouded TFM-130-32-S-D-LC header connector from Samtec will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 60 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 250 VAC. It has a straight body orientation. Its pitch is 1.27 mm. This is a 2-row connector. It has a header type gender. This device has a maximum current rating of 3.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 125 °C. TFM-130-32-S-D-LC is housed in black liquid crystal polymer. This product is 41.28 mm long, 11.18 mm tall and 5.72 mm deep. It uses the solder termination method.

安富利:
Conn Shrouded Header HDR 60 POS 1.27mm Solder ST SMD Tube

Newark:
# SAMTEC  TFM-130-32-S-D-LC  Board-To-Board Connector, 1.27 mm, 60 Contacts, Header, TFM Series, Surface Mount, 2 Rows

Electro Sonic:
Conn Shrouded Header HDR 60 POS 1.27mm Solder ST SMD Automotive Tube
