TFM-120-12-S-D-LC

SAMTEC TFM-120-12-S-D-LC Board-To-Board Connector, 1.27mm, 40Contacts, Header, TFM Series, Surface Mount, 2Rows

Conn Shrouded Header HDR 40 POS 1.27mm Solder ST SMD Automotive Tube

欧时:
Tiger Eye HDR .050" 40p

得捷:
CONN HEADER SMD 40POS 1.27MM

艾睿:

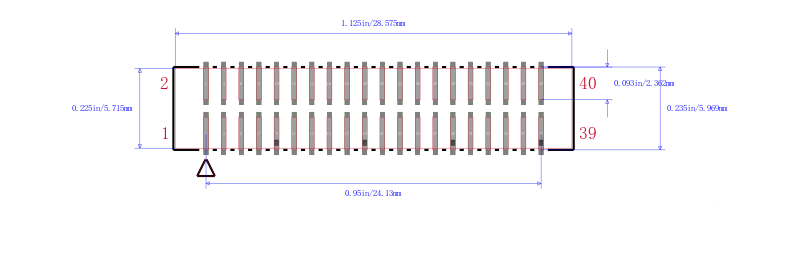

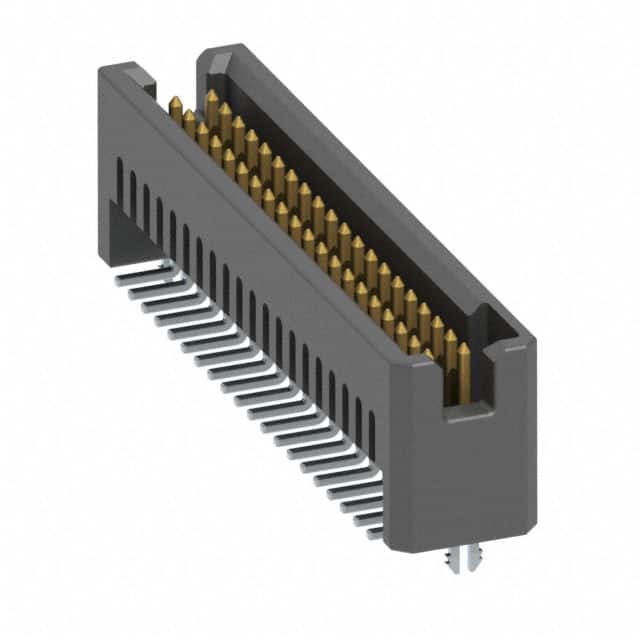

Use this shrouded TFM-120-12-S-D-LC connector from Samtec when board-to-board interconnects is required. This HDR connector&s;s 40 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. This is a 2-row connector. It has a maximum voltage rating of 250 VAC. Its pitch is 1.27 mm. It has a straight body orientation. This device has a maximum current rating of 3.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 28.58 mm long, 7.49 mm tall and 5.72 mm deep. This connector has an operating temperature of -55 to 125 °C. TFM-120-12-S-D-LC is housed in black liquid crystal polymer. It uses the solder termination method.

安富利:
Conn Shrouded Header HDR 40 POS 1.27mm Solder ST SMD Tube

Verical:
Conn Shrouded Header 4 Sides HDR 40 POS 1.27mm Solder ST Top Entry SMD TIGER EYE™ Tube

Newark:
# SAMTEC  TFM-120-12-S-D-LC  Board-To-Board Connector, 1.27 mm, 40 Contacts, Header, TFM Series, Surface Mount, 2 Rows

Online Components:
Conn Shrouded Header HDR 40 POS 1.27mm Solder ST SMD Automotive Tube

Electro Sonic:
Conn Shrouded Header HDR 40 POS 1.27mm Solder ST SMD Automotive Tube
