VISHAY TSUS5202 红外发射器, 15 °, T-1 3/4 5mm, 150 mA, 1.3 V, 800 ns, 800 ns

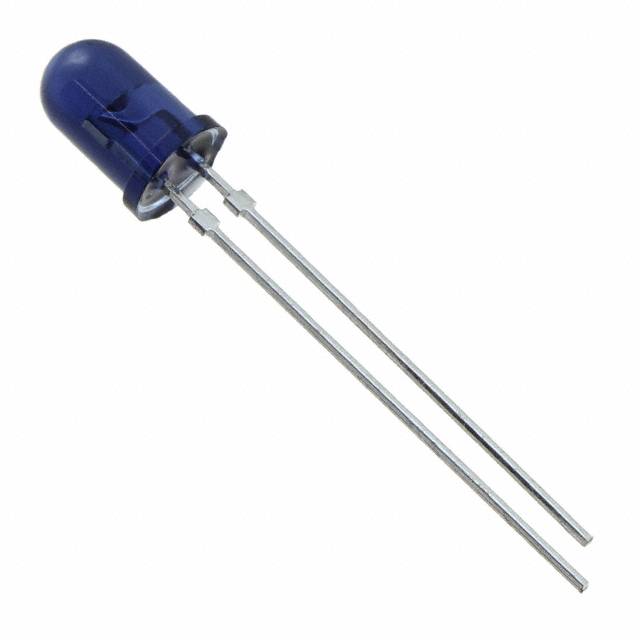

The is a 950nm Infrared Emitting Diode in GaAs technology moulded in a blue-grey tinted plastic package. It is suitable for use with infrared remote control and free air transmission systems with low forward voltage and small package requirements.
额定电压DC 1.30 V
上升/下降时间 0.8 µs
针脚数 2
正向电压 2.2 V
波长 950 nm
视角 15°
峰值波长 950 nm
耗散功率 210 mW
上升时间 800 ns
测试电流 100 mA
正向电流 150 mA
正向电压Max 1.3 V
正向电流Max 150 mA
下降时间 800 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 210 mW
安装方式 Through Hole
引脚数 2
封装 T-1
引脚间距 2.54 mm
宽度 5.8 mm
高度 8.7 mm
封装 T-1
引脚间距 2.54 mm
颜色 Infrared
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Bulk
制造应用 Communications & Networking, Industrial, Sensing & Instrumentation, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TSUS5202 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
387 Adafruit Industries | 功能相似 | TSUS5202和387的区别 |
