240 to 960W TSP Series3-phase input 3AC 400V or 3AC 500V 200 % boost power for up to 5 seconds Alternative to AC transformers Fully regulated 24 Vdc output with 10 A, 20 A or 40 A Rugged metal case design qualified for harsh industrial environment High efficiency >92% Operating temperature range: –25 °C to +60 °C full power Overload and over temperature protection Power good signal, remote On/Off ### 标准IEC60950, EN50178, UL60950-1, UL508C, EN60950-1### 开关模式 - Traco

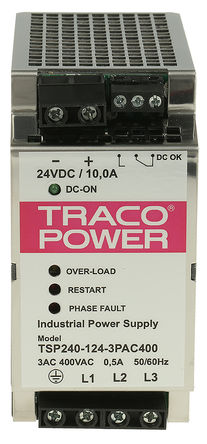

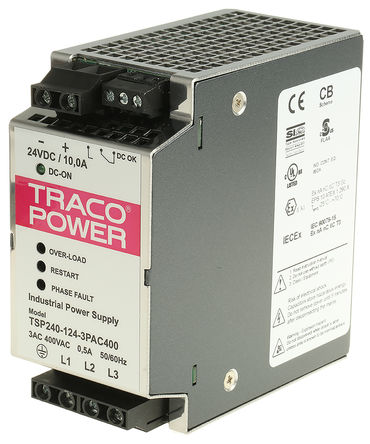

240 to 960W TSP Series
3-phase input 3AC 400V or 3AC 500V
200 % boost power for up to 5 seconds
Alternative to AC transformers
Fully regulated 24 Vdc output with 10 A, 20 A or 40 A
Rugged metal case design qualified for harsh industrial environment
High efficiency >92%
Operating temperature range: –25 °C to +60 °C full power
Overload and over temperature protection
Power good signal, remote On/Off
### 标准
IEC60950, EN50178, UL60950-1, UL508C, EN60950-1
电源电压DC 400 V
额定功率 240 W
输出接口数 1
输出电压 24 VDC
输出电流 10 A
输入电压Max 440 VAC
输入电压Min 320 VAC
输入电压AC Max 440 v
输入电压AC Min 320 v
输出电压Max 24 VDC
输出电压Min 24 VDC
输出电流Max 10 A
输出功率Max 240 W
长度 110 mm
宽度 54 mm
高度 110 mm
重量 575 g
工作温度 -25℃ ~ 60℃
产品生命周期 Obsolete
制造应用 危险场所，工业，ITE（商用）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
