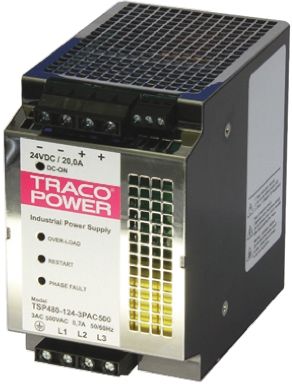

240 to 960W TSP Series
3-phase input 3AC 400V or 3AC 500V
200 % boost power for up to 5 seconds
Alternative to AC transformers
Fully regulated 24 Vdc output with 10 A, 20 A or 40 A
Rugged metal case design qualified for harsh industrial environment
High efficiency >92%
Operating temperature range: –25 °C to +60 °C full power
Overload and over temperature protection
Power good signal, remote On/Off
### 标准
IEC60950, EN50178, UL60950-1, UL508C, EN60950-1
电源电压DC 500 V
额定功率 480 W
输出接口数 1
输出电压 24 VDC
输出电流 20 A
输入电压Max 550 VAC
输入电压Min 400 VAC
输入电压AC Max 550 v
输入电压AC Min 400 v
输出电压Max 24 VDC
输出电压Min 24 VDC
输出电流Max 20 A
输出功率Max 480 W
长度 125 mm
宽度 80 mm
高度 125 mm
重量 1.1 kg
工作温度 -25℃ ~ 60℃
产品生命周期 Obsolete
制造应用 危险场所，工业，ITE（商用）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
