TSM-110-01-L-SV-TR

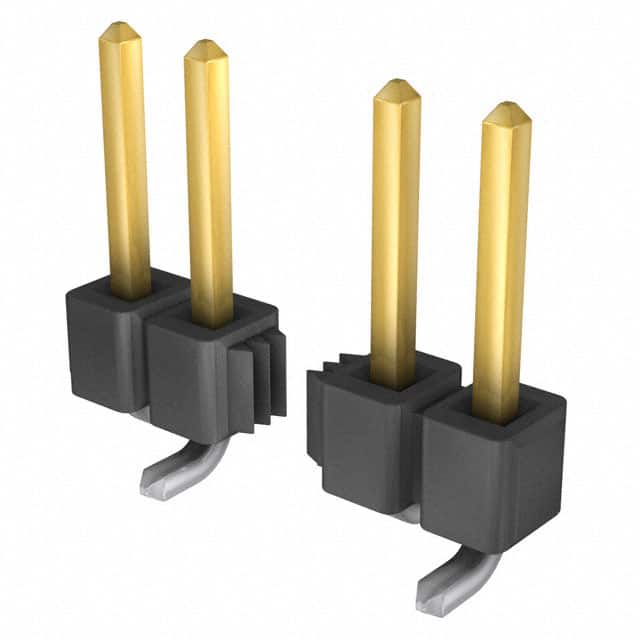

TSM-110-01-L-SV-TR图片1
TSM-110-01-L-SV-TR概述

2.54mm 方针

针座 表面贴装型 10 位置 0.100"(2.54mm)


立创商城:
2.54mm 方针


得捷:
CONN HEADER SMD 10POS 2.54MM


艾睿:
Protect your printed circuit boards from accidental damages with Samtec&s;s unshrouded TSM-110-01-L-SV-TR header connector. This HDR connector&s;s 10 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. Its pitch is 2.54 mm. It has a maximum voltage rating of 475 VAC. This is a 1-row connector. It has a header type gender. This device has a maximum current rating of 5.4 A/contact. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 25.4 mm long, 9.65 mm tall and 4.82 mm deep. This connector has an operating temperature of -55 to 125 °C. TSM-110-01-L-SV-TR is housed in black liquid crystal polymer. It uses the solder termination method.


Newark:
# SAMTEC  TSM-110-01-L-SV-TR  .025 SQ. TERMINAL STRIPS


TSM-110-01-L-SV-TR中文资料参数规格
技术参数

触点数 10

极性 Male

排数 1

额定电流Max 5.4A/触头

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压Max 475 VAC

封装参数

安装方式 Solder

封装 -

外形尺寸

高度 9.65 mm

封装 -

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买TSM-110-01-L-SV-TR
型号: TSM-110-01-L-SV-TR
描述:2.54mm 方针
替代型号TSM-110-01-L-SV-TR
型号/品牌 代替类型 替代型号对比

TSM-110-01-L-SV-TR

Samtec 申泰电子

当前型号

当前型号

M20-8771006

Harwin

功能相似

TSM-110-01-L-SV-TR和M20-8771006的区别
