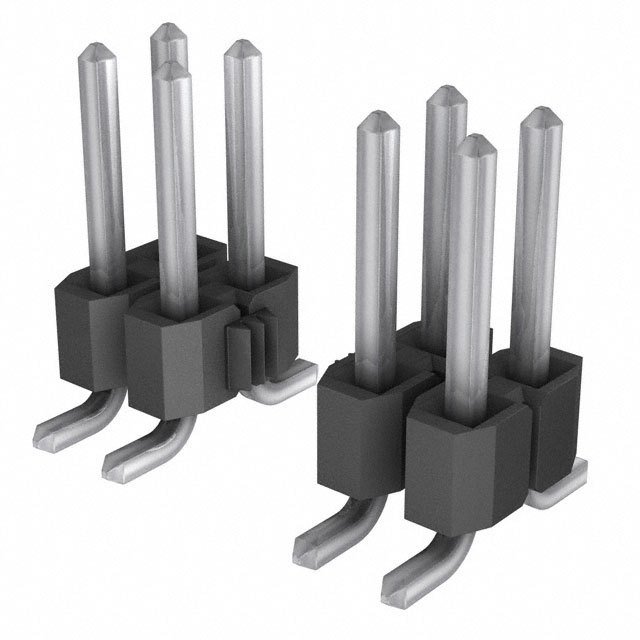

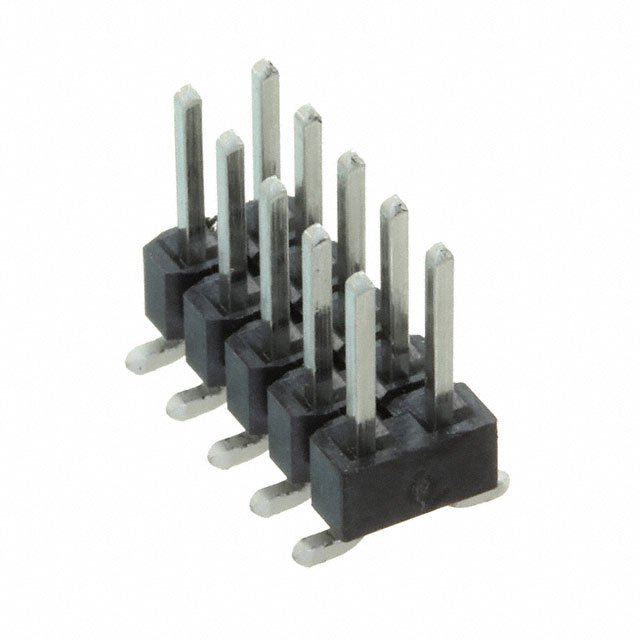

TSM-105-01-T-DV-P

板至板连接, 2.54 mm, 10 触点, 针座, TSM Series, 表面安装　, 2 排

针座 表面贴装型 10 位置 0.100"（2.54mm）

得捷:
CONN HEADER SMD 10POS 2.54MM

欧时:
.100" Surface Mount Terminal Strip

e络盟:
板至板连接, 2.54 mm, 10 触点, 针座, TSM Series, 表面安装　, 2 排

艾睿:
Are you looking for a solution to support physical configuration options on your PCB? Then mount this unshrouded TSM-105-01-T-DV-P header connector from Samtec on your PCB today! This HDR connector&s;s 10 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a maximum voltage rating of 475 VAC. This is a 2-row connector. It has a straight body orientation. Its pitch is 2.54 mm. It has a header type gender. This device has a maximum current rating of 5.4 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. TSM-105-01-T-DV-P is housed in black liquid crystal polymer. This product is 12.7 mm long, 9.65 mm tall and 7.36 mm deep. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method.

安富利:
Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST SMD Tube

Newark:
# SAMTEC  TSM-105-01-T-DV-P  .025 SQ. TERMINAL STRIPS

Win Source:
10 Positions Header, Unshrouded Connector 0.100" 2.54mm Surface Mount Tin
