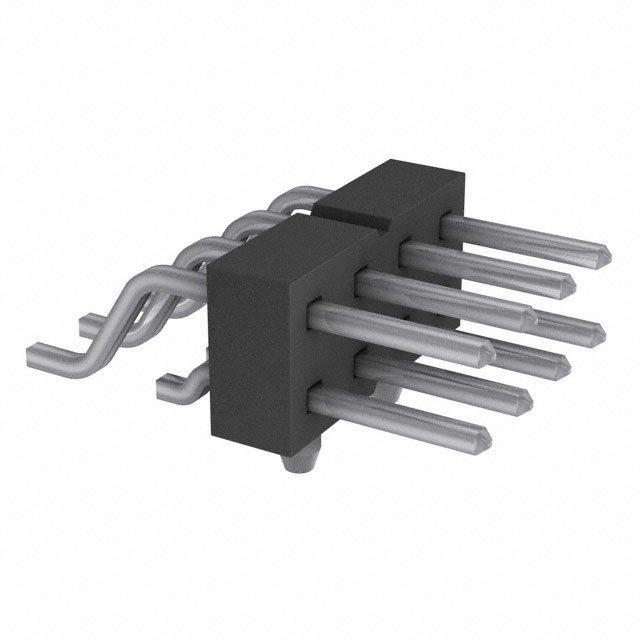

Conn Unshrouded Header HDR 8POS 2.54mm Solder RA SMD T/R
针座 表面贴装，直角 8 位置 0.100"（2.54mm）
得捷:
CONN HEADER SMD R/A 8POS 2.54MM
艾睿:
This unshrouded TSM-104-01-T-DH-A-P-TR header connector from Samtec is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector&s;s 8 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a maximum voltage rating of 475 VAC. This is a 2-row connector. Its pitch is 2.54 mm. It has a header type gender. It has a right angle body orientation. This device has a maximum current rating of 5.4 A/contact. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. TSM-104-01-T-DH-A-P-TR is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 105 °C. This product is 10.16 mm long, 6.1 mm tall and 16.25 mm deep. It uses the solder termination method.
Verical:
Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Side Entry SMD T/R
Newark:
# SAMTEC TSM-104-01-T-DH-A-P-TR .025 SQ. TERMINAL STRIPS
