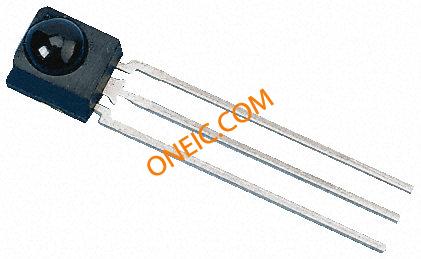

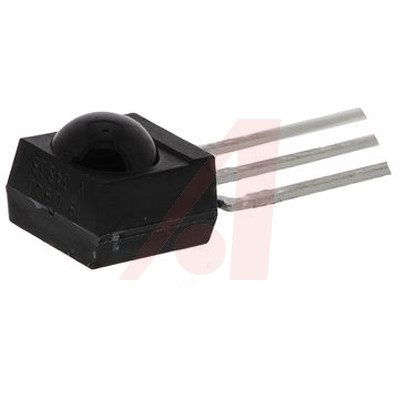

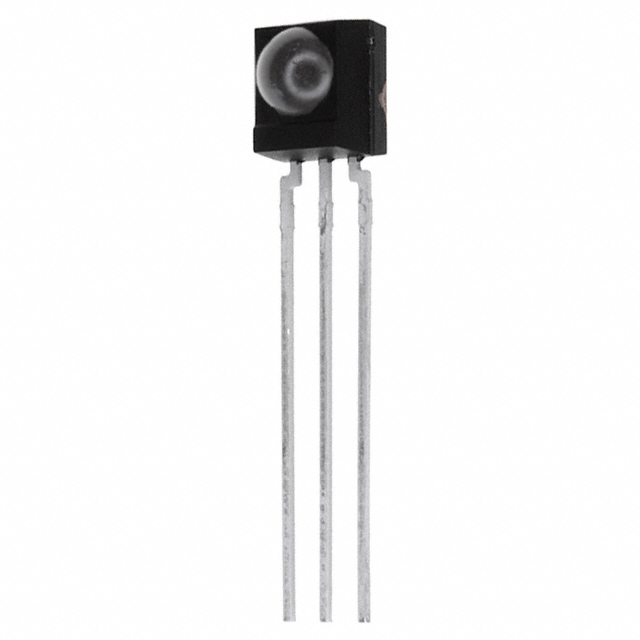

VISHAY TSOP34838.. 红外线发射二极管
The from Vishay is a miniaturized IR receiver module for infrared remote control systems. A PIN diode and a preamplifier are assembled on lead frame, the epoxy package contains an IR filter. The demodulated output signal can be directly connected to a microprocessor for decoding. This device is widely used for remote controlling.
This components have not been qualified according to automotive specifications.
频率 38 kHz
电源电压DC 2.50V min
输出电流 5 mA
供电电流 450 µA
针脚数 3
波长 950 nm
视角 45°
耗散功率 10 mW
工作温度Max 85 ℃
工作温度Min -25 ℃
电源电压 2.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.5 V
安装方式 Through Hole
引脚数 3
长度 6 mm
宽度 5.6 mm
高度 6.95 mm
脚长度 23.6 mm
工作温度 -25℃ ~ 85℃
产品生命周期 Unknown
包装方式 Tube
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TSOP34838 VISHAY 威世 | 当前型号 | 当前型号 |
TSOP32238 威世 | 类似代替 | TSOP34838和TSOP32238的区别 |
