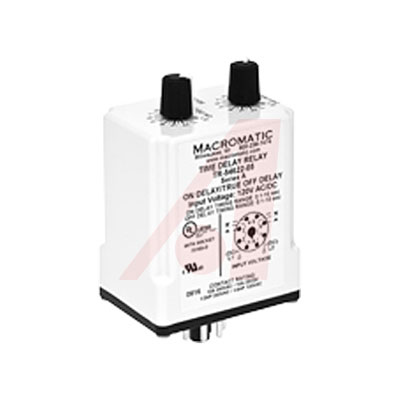

MACROMATIC CONTROLS TR-51622-16 Time Delay Relay, Off Delay, TR-5 Series, DPDT, 10A, Socket, 240VAC, Quick Connect
Macromatic’s TR-5 Series Time Delay Relays provide onboard & remote adjustable or fixed time delays. They are available in many functions.
* Off Delay
* 0.6-60 Min
* Uses industry-standard 11 pin octal socket
* Pilot Duty Rating
Specifications
* DPDT 10A @ 240VAC/DC
* Temperature: –28°C to 65°C
* Dimensions: 3.5" D × 1.7" W × 2.4" H
Description of Function:
Upon application of input voltage, the time delay relay is ready to accept a trigger. When the trigger is applied, the output is energized. Upon removal of the trigger, the time delay t begins. At the end of the time delay t, the output is de-energized. Any application of the trigger during the time delay will reset the time delay t and the output remains energized.
