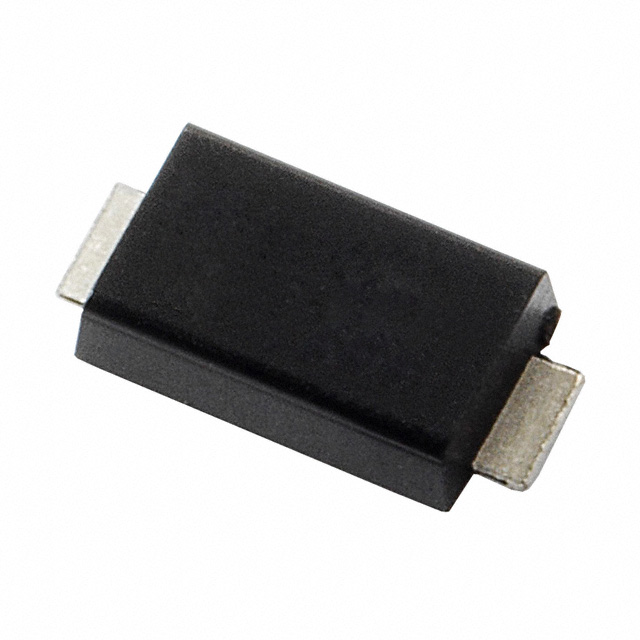

TPSMA6L13A

DO-221AC 13V 600W

21.5V 夹子 28A Ipp TVS - 表面贴装型 DO-221AC

得捷:
TVS DIODE 13VWM 21.5VC DO221AC

立创商城:
Vrwm:13V 600W

艾睿:
Protect vulnerable electronic circuits against overvoltages by equipping your device with this TPSMA6L13A TVS diode from Littelfuse. Its maximum leakage current is 1 μA. Its test current is 1 mA. This device&s;s maximum clamping voltage is 21.5 V and minimum breakdown voltage is 14.4 V. Its peak pulse power dissipation is 600 W. This TVS diode has an operating temperature range of -65 °C to 150 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively.

TME:
Diode: transil; 600W; 15.2V; 28A; unidirectional; ±5%; DO221AC

Newark:
# LITTELFUSE  TPSMA6L13A  TVS Diode, TPSMA6L Series, Unidirectional, 13 V, 21.5 V, DO-221AC, 2 Pins
