DO-221AC 6V 600W
10.3V 夹子 58.3A Ipp TVS - 表面贴装型 DO-221AC
立创商城:
Vrwm:6V 600W
得捷:
TVS DIODE 6VWM 10.3VC DO221AC
贸泽:
ESD Suppressors / TVS Diodes 6V 600W UNI-DIR TPSMA6L AEC-Q101
艾睿:
This TPSMA6L6.0A TVS diode developed by Littelfuse can help protect your expensive equipment and electronics. Its peak pulse power dissipation is 600 W. Its test current is 10 mA. This device&s;s maximum clamping voltage is 10.3 V and minimum breakdown voltage is 6.67 V. Its maximum leakage current is 800 μA. This TVS diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery.
TME:
Diode: transil; 600W; 7V; 58.3A; unidirectional; ±5%; DO221AC
Newark:

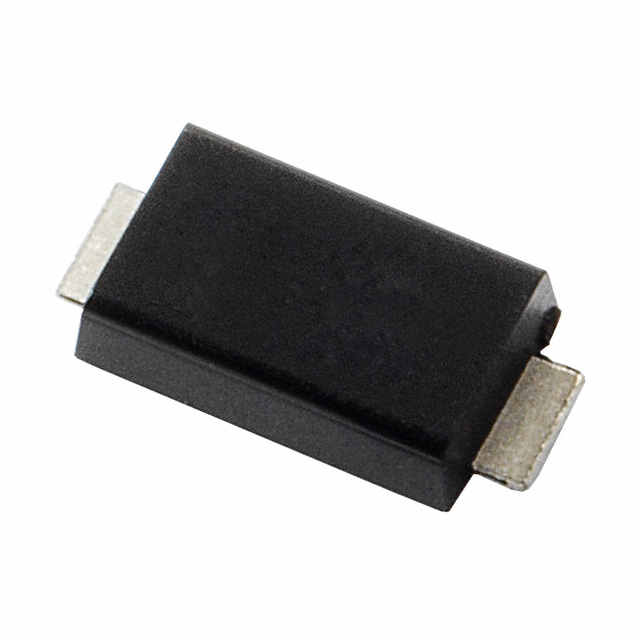

# LITTELFUSE TPSMA6L6.0A TVS Diode, TPSMA6L Series, Unidirectional, 6 V, 10.3 V, DO-221AC, 2 Pins
击穿电压 7.37 V
耗散功率 3 W
钳位电压 10.3 V
最大反向电压(Vrrm) 6V
测试电流 10 mA
最大反向击穿电压 7.37 V
脉冲峰值功率 600 W
最小反向击穿电压 6.67 V
工作温度Max 150 ℃
工作温度Min 65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-221AC
长度 4.6 mm
宽度 2.95 mm
高度 1.1 mm
封装 DO-221AC
工作温度 -50℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPSMA6L6.0A Littelfuse 力特 | 当前型号 | 当前型号 |
SMA6L6.0A 力特 | 类似代替 | TPSMA6L6.0A和SMA6L6.0A的区别 |
