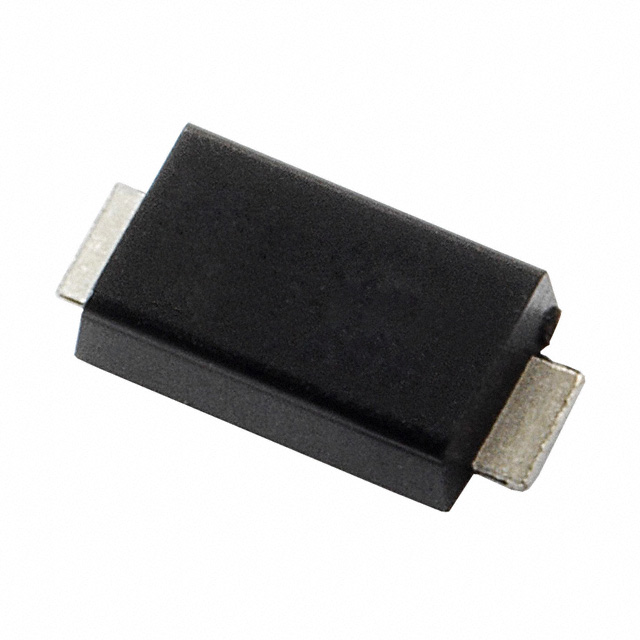

TPSMA6L8.5A

ESD 抑制器/TVS 二极管 600W 8.5V AEC-Q101 5% Uni-Directional

14.4V 夹子 41.7A Ipp TVS - 表面贴装型 DO-221AC

立创商城:
Vrwm:8.5V 600W

得捷:
TVS DIODE 8.5VWM 14.4VC DO221AC

贸泽:
ESD 抑制器/TVS 二极管 600W 8.5V AEC-Q101 5% Uni-Directional

艾睿:
Save yourself hassle by equipping your device with Littelfuse&s;s TPSMA6L8.5A TVS diode which will react to sudden or momentary overvoltage conditions. Its maximum leakage current is 20 μA. This device&s;s maximum clamping voltage is 14.4 V and minimum breakdown voltage is 9.44 V. Its peak pulse power dissipation is 600 W. Its test current is 1 mA. This TVS diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.

TME:
Diode: transil; 600W; 9.9V; 41.7A; unidirectional; ±5%; DO221AC

Newark:
# LITTELFUSE  TPSMA6L8.5A  TVS Diode, TPSMA6L Series, Unidirectional, 8.5 V, 14.4 V, DO-221AC, 2 Pins
