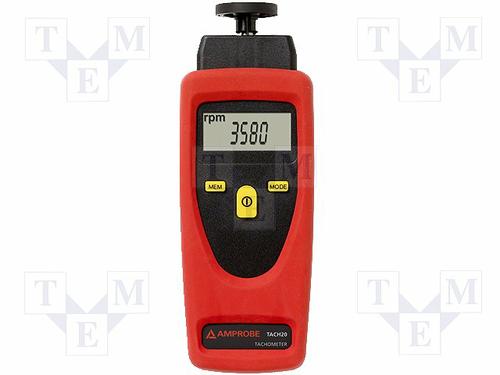

TACH20图片2

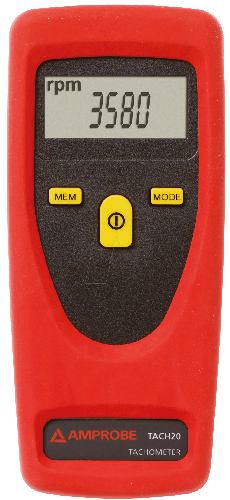

TACH20图片3

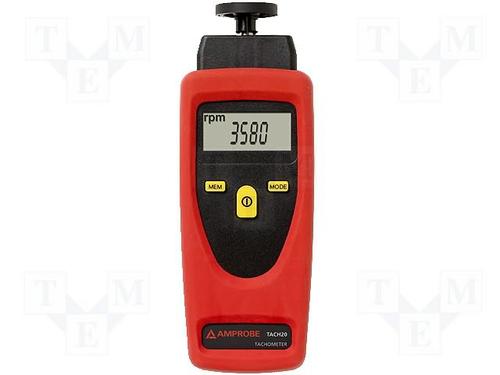

TACH20图片4

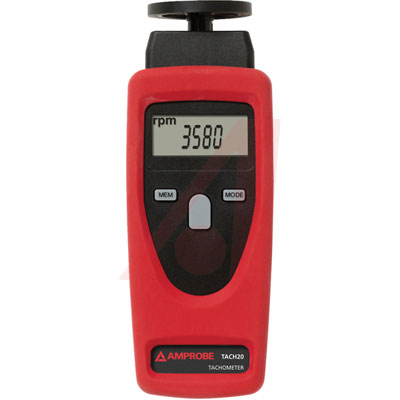

TACH20图片5
TACH20图片6
TACH20图片7
TACH20图片8
TACH20图片9
TACH20图片10

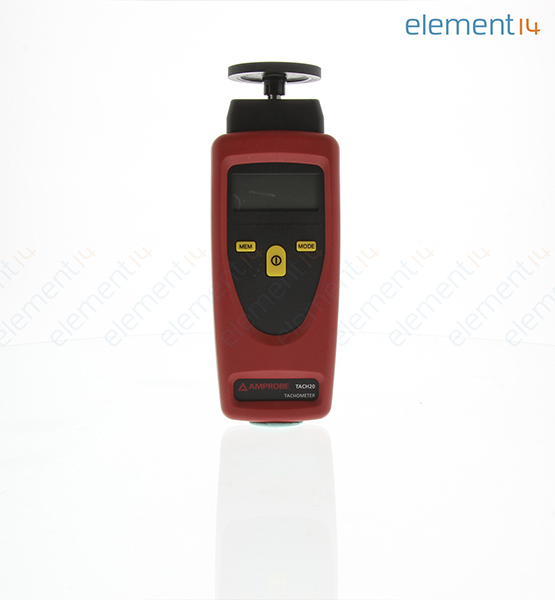

TACH20图片11
TACH20概述

AMPROBE INSTRUMENTS TACH20 TACHOMETER, 1 TO 99999MIN, 0.02%

The hand-held tachometer accurately measures rotational or surface speed as well as length. It comes with a large LCD display that allows the user to easily read the measurement. It also has a built in memory function that permits automatic storage of maximum, minimum, average values plus the last measurement displayed. The TACH20 is supplied with all the necessary accessories designed with optimal mechanical stability to ensure accurate, reliable, and repeatable measurements. In addition to the mechanical adapter that accepts a variety of tips, as well as the surface speed wheel for contact rpm measurement, the TACH20 can perform non-contact measurement by using the infrared beam function.

* Measures Rotational and Surface Speed

* Built-in Memory

* Digital Display

* Auto Power Off Function

* Easy to Select Units and Mode Functions

* Contact and Non-Contact Measurement

* Select RPM Using Infrared Beam or Adapter: m/min, m/sec, Ft./min, Ft./sec, In./min, m, Ft., and In.

* Includes 6 Adapters, Carrying Case, Reflective Tapes, Batteries and User Manual **Specifications**

* Accuracy — ±0.02% V. Reading ±1 Digit

* Measuring Ranges RPM: Optical 1 ... 99999 min , Mechanical 1 ... 19999 min

* Battery Type — 2x AA 1.5V Battery LR6 ALKALINE or Rechargeable

* Housing Material — ABS

TACH20中文资料参数规格
技术参数

工作温度Max 50 ℃

工作温度Min 0 ℃

精度 0.02 %

外形尺寸

宽度 60 mm

高度 175 mm

物理参数

工作温度 0℃ ~ 50℃

符合标准

RoHS标准 Non-Compliant

含铅标准 Not applicable

数据手册

在线购买TACH20
型号: TACH20
制造商: Amprobe
描述:AMPROBE INSTRUMENTS TACH20 TACHOMETER, 1 TO 99999MIN, 0.02%
