5VDC 20A 无锁存
**Features**

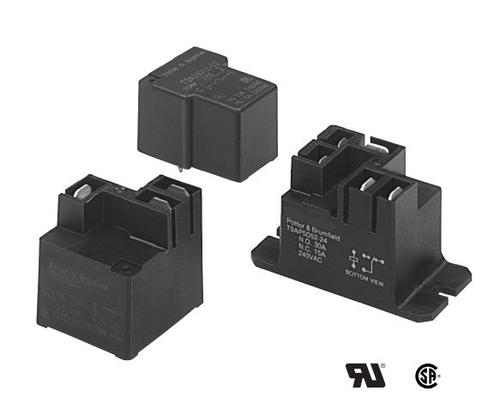

* Up to 30 Amp switching in SPST and 20 Amp in SPDT arrangements
* Immersion cleanable6, plastic sealed case available
* Meets UL 873 and UL 508 spacing – 1⁄8" through air, 1⁄4" over surface
* Load connections made via 1⁄4" Q. C. terminals and safety wells accept insulated female Q. C. terminals mounting codes 2 and 5
* UL Class F insulation system standard
* Well suited for various industrial, commercial and residential applications
立创商城:
5VDC 20A 无锁存
得捷:
RELAY GEN PURPOSE SPDT 20A 5V
艾睿:
Power Relay 5VDC 20NO/10NCA SPDT32.51mm 27.43mm 27.94mm THT
Allied Electronics:
RELAY GEN PURPOSE SPDT 20A 5V
安富利:
Electromechanical Relay SPDT 20NO/10NCA 5VDC 25Ohm Through Hole
Chip1Stop:
Electromechanical Relay SPDT 20NO/10NCA 5VDC 25Ohm Through Hole
Verical:
Electromechanical Relay 5VDC 25Ohm 20NO/10NCA SPDT 32.51mm 27.43mm 27.94mm THT Industrial Relay
Newark:

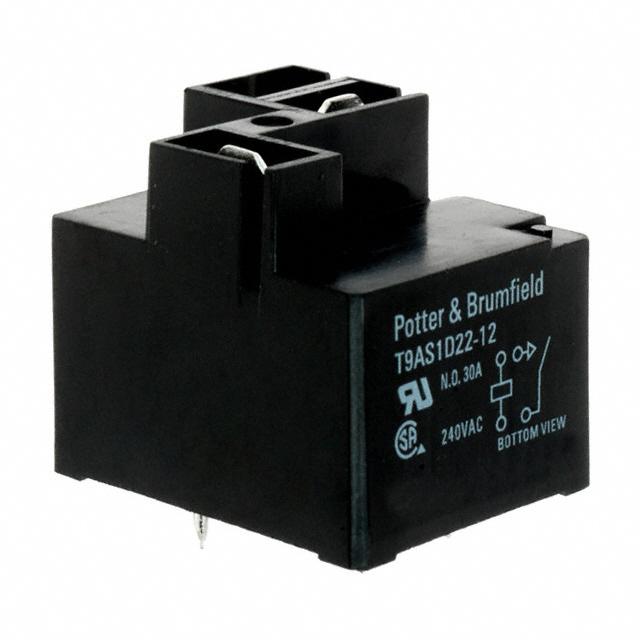

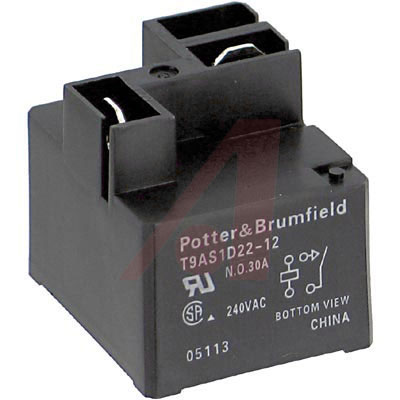

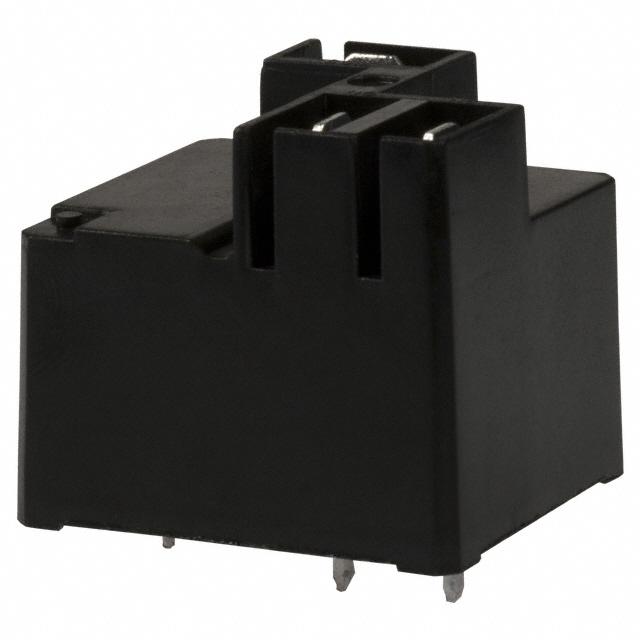

# TE CONNECTIVITY T9AS5D22-5 Power Relay, SPDT, Through Hole, DC Monostable
MASTER:
Power Relay 5VDC 20NO/10NCA SPDT32.51mm 27.43mm 27.94mm THT
Online Components:
Power Relay 5VDC 20NO/10NCA SPDT32.51x27.43x27.94mm THT
Electro Sonic:
Power Relay 5VDC 20NO/10NCA SPDT32.51mm 27.43mm 27.94mm THT
额定电流 20 A
输入电压DC 5.00 V
触点类型 SPDT
功耗 1 W
触点额定电流 30.0 A
线圈电压 5 VDC
线圈电流 200 mA
线圈功率DC 1.00 W
线圈电阻 25 Ω
载流 30.0 A
线圈电压DC 5 V
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压 277 VAC
额定电压DC Max 28 V
安装方式 Through Hole
封装 -
长度 32.5 mm
宽度 27.4 mm
高度 27.9 mm
封装 -
触点材质 Silver Cadmium Oxide
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
