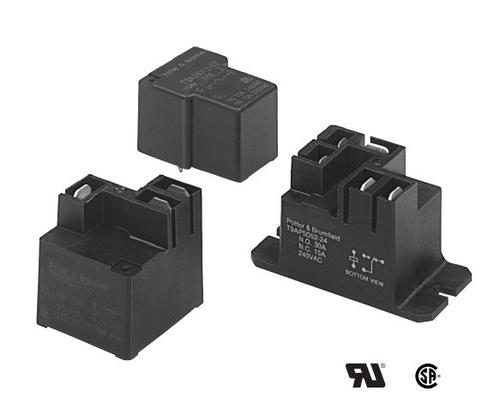

Power Relay 48VDC 30A SPST-NO 32.51mm 27.43mm 27.94mm Through Hole
T9A Power Relay, option for load connections via QC terminals. Standard 30 Amps global footprint.
贸泽:
General Purpose Relays SPST-NO 30A 48VDC POWER RELAY
艾睿:
Power Relay 48VDC 30A SPST-NO 32.51mm 27.43mm 27.94mm THT
安富利:
Electromechanical Relay SPST-NO 30A 48VDC 2.304KOhm Through Hole
Chip1Stop:
Electromechanical Relay SPST-NO 30A 48VDC 2.304KOhm Through Hole
Verical:
Electromechanical Relay 48VDC 2.304KOhm 30A SPST-NO 32.51mm 27.43mm 27.94mm THT Industrial Relay
MASTER:
Power Relay 48VDC 30A SPST-NO 32.51mm 27.43mm 27.94mm THT
Online Components:
Power Relay 48VDC 30A SPST-NO 32.51mm 27.43mm 27.94mm THT
Electro Sonic:
Power Relay 48VDC 30A SPST-NO32.51mm 27.43mm 27.94mm THT
输入电压DC 48.0 V
触点类型 SPST-NO
功耗 1 W
触点额定电流 30 A
线圈电压 48 VDC
线圈电流 21 mA
线圈功率DC 1.00 W
线圈电阻 2.304 KΩ
线圈电压DC 48 V
开关电流Max 30 A
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压DC Max 28 V
安装方式 Through Hole
长度 32.51 mm
宽度 27.4 mm
高度 27.94 mm
触点材质 Silver Cadmium Oxide
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tray, Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
