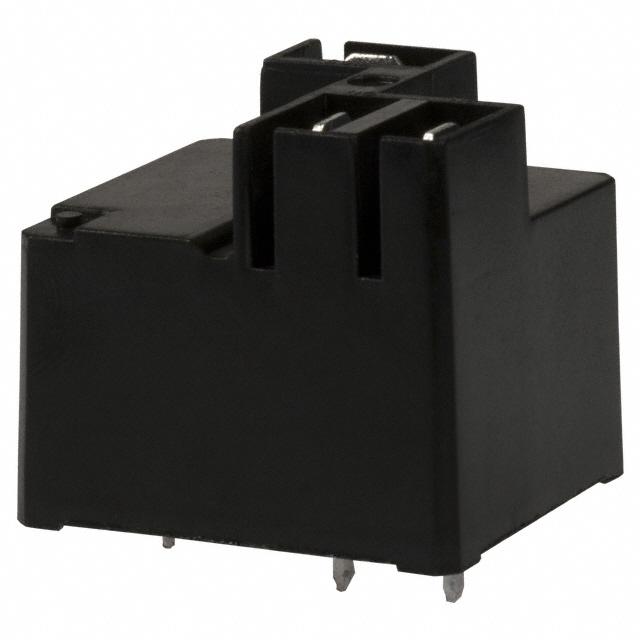

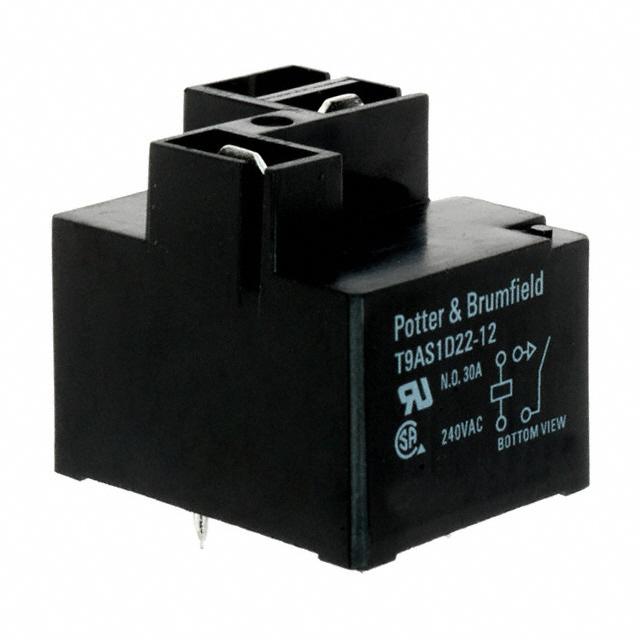

Power Relay 24VDC 30A SPST-NO 32.51mm 27.43mm 20.4mm Through Hole

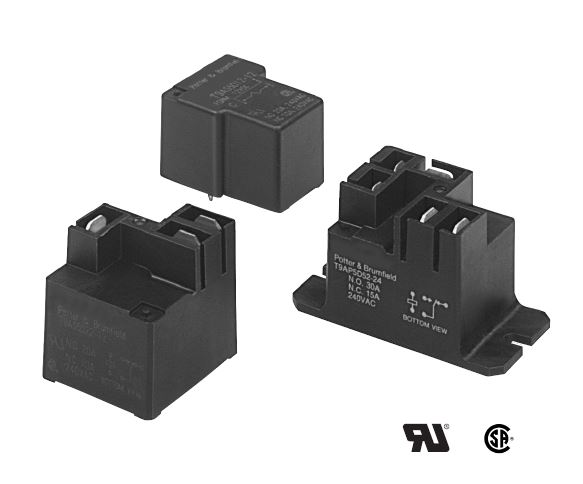

T9A Power Relay, option for load connections via QC terminals. Standard 30 Amps global footprint.
得捷:
RELAY GEN PURPOSE SPST 30A 24V
艾睿:
Power Relay 24VDC 30A SPST-NO32.51mm 27.43mm 20.4mm THT
Chip1Stop:
Electromechanical Relay SPST-NO 30A 24VDC 576Ohm Through Hole
Verical:
Electromechanical Relay 24VDC 576Ohm 30A SPST-NO 32.51mm 27.43mm 20.4mm THT Industrial Relay
MASTER:
Power Relay 24VDC 30A SPST-NO32.51mm 27.43mm 20.4mm THT
Online Components:
Power Relay 24VDC 30A SPST-NO 32.51mm 27.43mm 20.4mm THT
Electro Sonic:
Power Relay 24VDC 30A SPST-NO32.51mm 27.43mm 20.4mm THT
线圈电压 24 VDC
线圈电流 42 mA
线圈电阻 576 Ω
线圈电压DC 24 V
线圈功率 1 W
开关电流Max 30 A
工作温度Max 85 ℃
工作温度Min -55 ℃
安装方式 Through Hole
长度 32.51 mm
宽度 27.43 mm
高度 20.4 mm
触点材质 Silver Cadmium Oxide
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
HTS代码 8536410020
