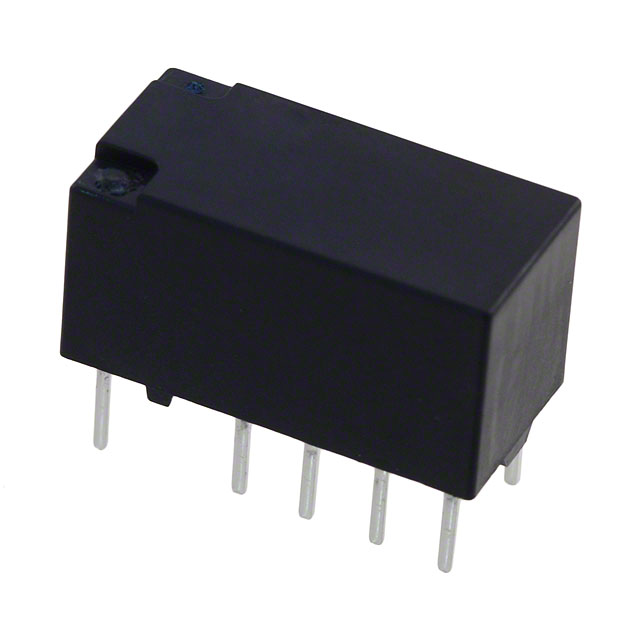

Electromechanical Relay 12VDC 1.028KΩ 2A DPDT 15mm 7.4mm 8.2mm THT General Purpose Relay Automotive
Telecom Relay DPDT 2 Form C Through Hole
得捷:
RELAY TELECOM DPDT 2A 12VDC
艾睿:
Signal Relay 12VDC 2A DPDT 15mm 7.4mm 8.2mm THT Automotive
Chip1Stop:
Electromechanical Relay DPDT 2A 12VDC 1.028KOhm Through Hole
Verical:
Electromechanical Relay 12VDC 1.028KOhm 2A DPDT 15mm 7.4mm 8.2mm THT General Purpose Relay Automotive
Electro Sonic:
Electromechanical Relay 12VDC 1.028KOhm 2A DPDT 15x7.4x8.2mm THT General Purpose Relay

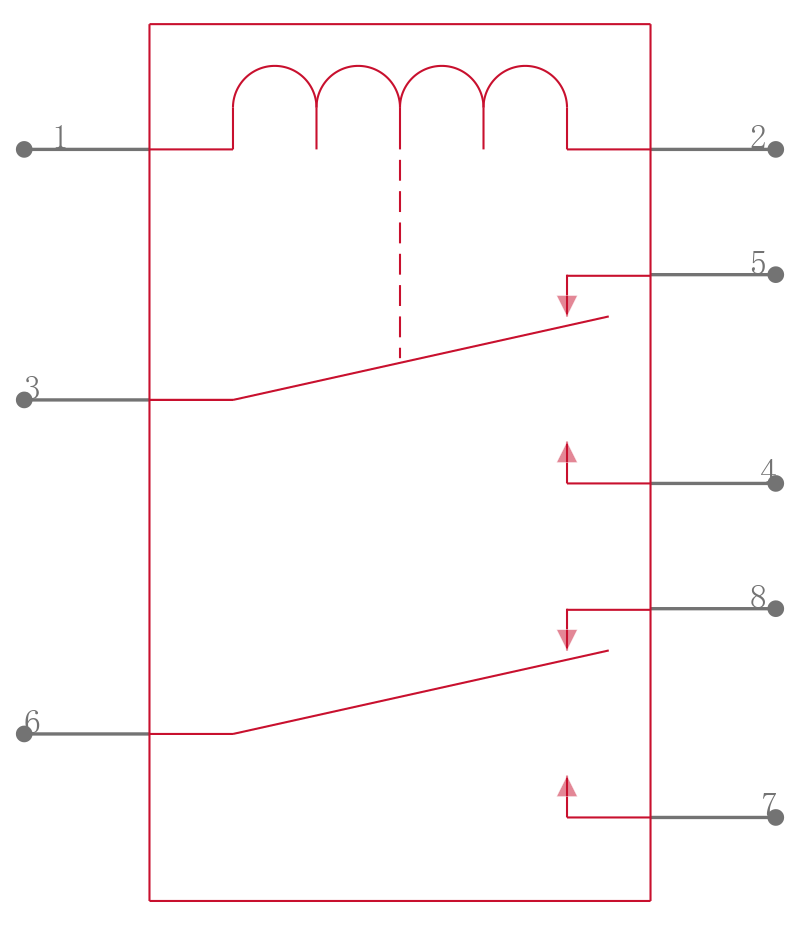

触点类型 DPDT
功耗 140 mW
线圈电压 12 V
线圈电流 11.7 mA
线圈电阻 1.03 kΩ
额定电流Max 2 A
线圈电压DC 12 V
开关电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Through Hole
封装 DIP

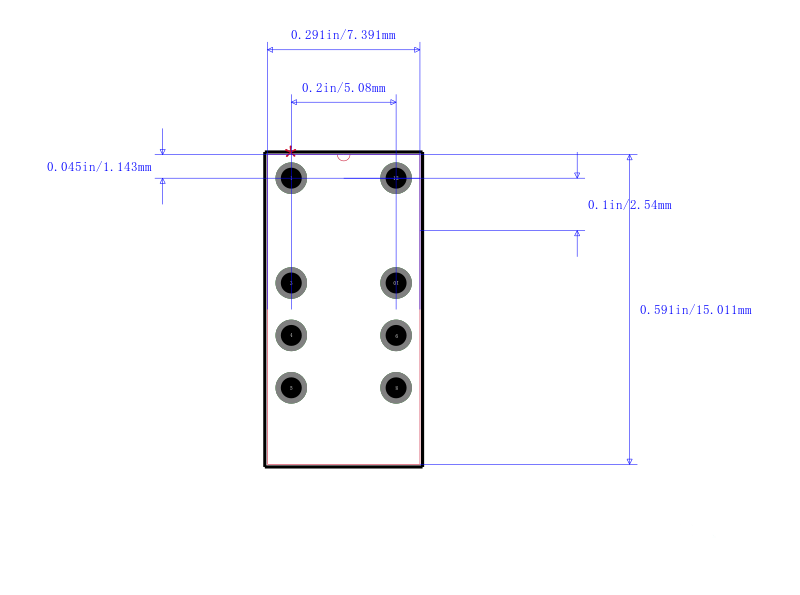

长度 15 mm
宽度 7.4 mm
高度 8.2 mm
封装 DIP
触点材质 Silver, Gold
工作温度 -40℃ ~ 85℃
产品生命周期 Obsolete
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
