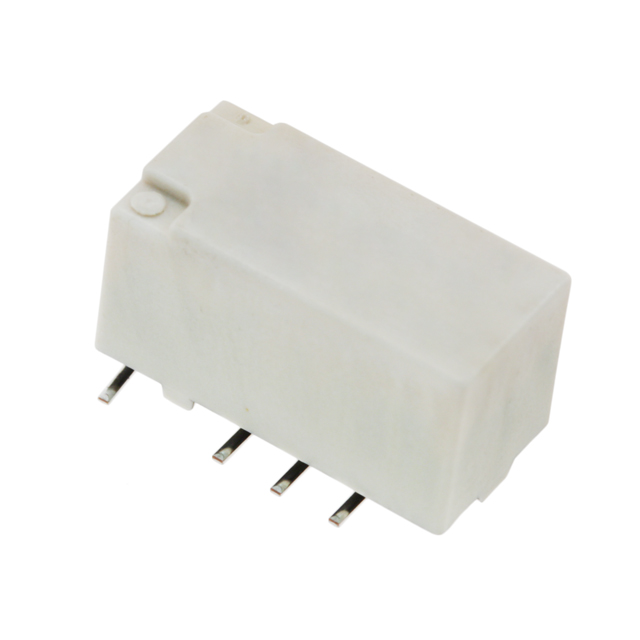

RELAY LATCH 2A 3VDC 150mW SMD
Electromechanical Relay 3VDC 60Ohm 2A DPDT 15x9.4x8.4mm SMD General Purpose Relay
得捷:
RELAY GEN PURPOSE DPDT 2A 3VDC
Allied Electronics:
RELAY GENERAL PURPOSE DPDT 2A 3V
Chip1Stop:
Electromechanical Relay DPDT 2A 3VDC 60Ohm Surface Mount
Verical:
Electromechanical Relay 3VDC 60Ohm 2A DPDT 15x9.4x8.4mm SMD General Purpose Relay
MASTER:
Electromechanical Relay 3VDC 60Ohm 2A DPDT 15x9.4x8.4mm SMD General Purpose Relay
Online Components:
Electromechanical Relay 3VDC 60Ohm 2A DPDT 15x9.4x8.4mm SMD General Purpose Relay
Electro Sonic:
Electromechanical Relay 3VDC 60Ohm 2A DPDT 15x9.4x8.4mm SMD General Purpose Relay
额定电压DC 220 V
触点额定电流 2 A
线圈电压 3 VDC
线圈电流 50 mA
线圈电阻 60 Ω
额定电流Max 2 A
线圈电压DC 3 V
额定功率Max 60 W
额定电压DC Max 220 V
安装方式 Surface Mount
引脚数 8

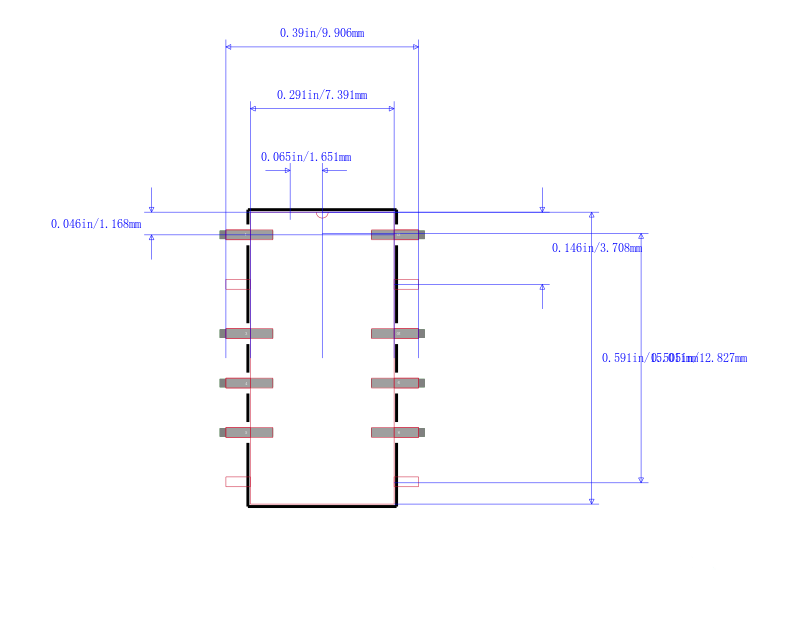

长度 15 mm
宽度 9.4 mm
高度 8.4 mm
触点材质 Silver, Gold Clad
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490050
