低信号继电器 - PCB 2A 24VDC 170MW PCB RELAY LATCHING

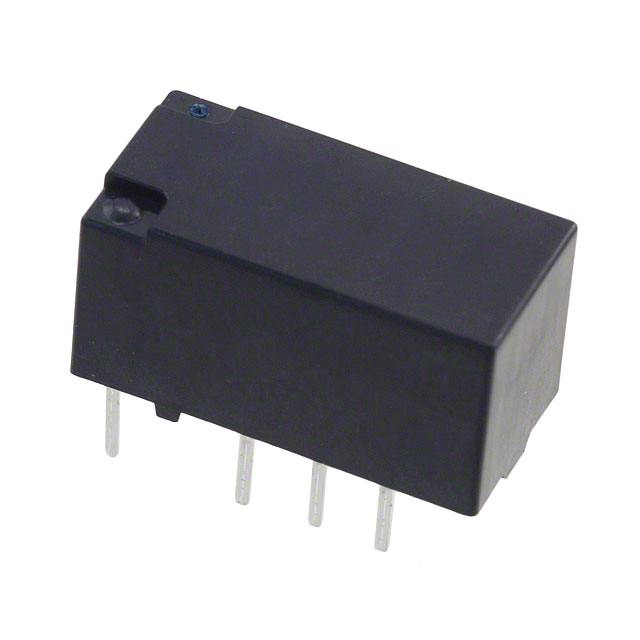

Electromechanical Relay 24VDC 3.388KOhm 2A DPDT 15x7.4x8.2mm THT General Purpose Relay
得捷:
RELAY GEN PURPOSE DPDT 2A 24VDC
贸泽:
低信号继电器 - PCB 2A 24VDC 170MW PCB RELAY LATCHING
Allied Electronics:
RELAY GEN PURPOSE DPDT 2A 24V
Chip1Stop:
Electromechanical Relay DPDT 2A 24VDC 3.388KOhm Through Hole
Verical:
Electromechanical Relay 24VDC 3.388KOhm 2A DPDT 15x7.4x8.2mm THT General Purpose Relay
MASTER:
Electromechanical Relay 24VDC 3.388KOhm 2A DPDT 15x7.4x8.2mm THT General Purpose Relay
Online Components:
Electromechanical Relay 24VDC 3.388KOhm 2A DPDT 15x7.4x8.2mm THT General Purpose Relay
Electro Sonic:
Electromechanical Relay 24VDC 3.388KOhm 2A DPDT 15x7.4x8.2mm THT General Purpose Relay
功耗 170 mW
线圈电压 24 VDC
线圈电流 7.1 mA
线圈电阻 3.388 KΩ
额定电流Max 2 A
线圈电压DC 24 V
额定功率Max 60 W
开关电流Max 2 A
额定电压DC Max 220 V
安装方式 Through Hole
引脚数 8
封装 DIP

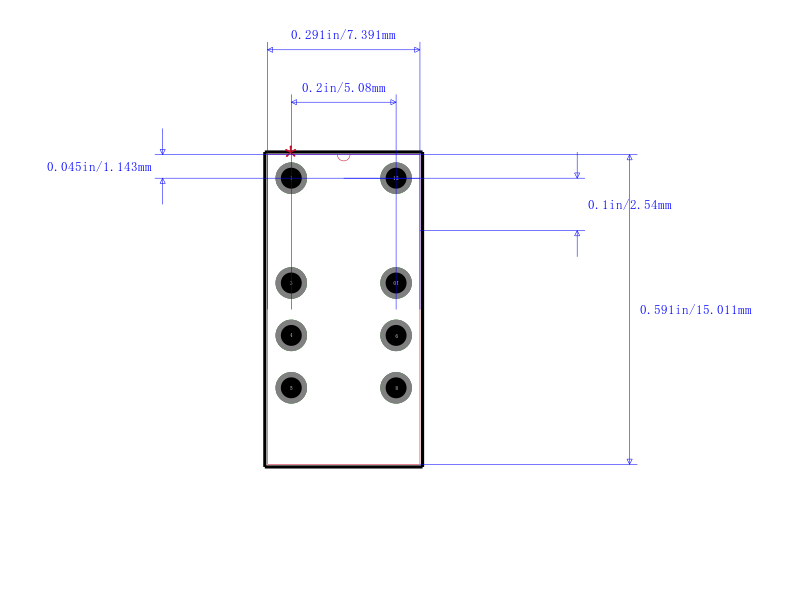

长度 15 mm
宽度 7.4 mm
高度 8.2 mm
封装 DIP
触点材质 Silver, Gold
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490050
