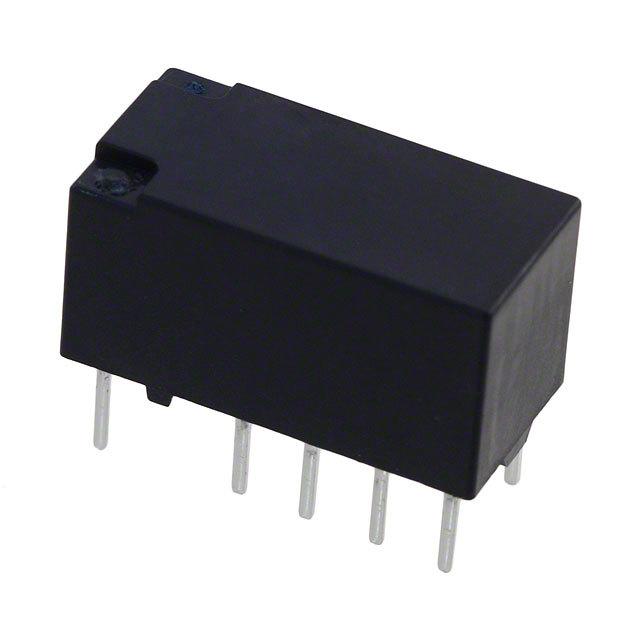

PANASONIC ELECTRIC WORKS TX2-L-3V 信号继电器, DPDT, 3VDC, 2A, PCB
继电器与电磁阀
贸泽:
Low Signal Relays - PCB 2A 3VDC DPDT LATCHING PCB
艾睿:
Electromechanical Relay 3VDC 90Ohm 2A DPDT 15mm 7.4mm 8.2mm THT General Purpose Relay Automotive
Allied Electronics:
RELAY TELECOM DPDT 2A 3V
安富利:
Electromechanical Relay DPDT 2A 3VDC 90Ohm Through Hole
Chip1Stop:
Electromechanical Relay DPDT 2A 3VDC 90Ohm Through Hole
Verical:
Electromechanical Relay 3VDC 90Ohm 2A DPDT 15mm 7.4mm 8.2mm THT General Purpose Relay Automotive
Newark:
# PANASONIC ELECTRIC WORKS TX2-L-3V Signal Relay, DPDT, 3 VDC, 2 A, TX Series, Through Hole, Latching Single Coil
MASTER:
Signal Relay 3VDC 2A DPDT 15mm 7.4mm 8.2mm THT Automotive
Electro Sonic:
Signal Relay 3VDC 2A DPDT 15mm 7.4mm 8.2mm THT Automotive
额定电压DC 220 V
额定电流 2 A
触点类型 DPDT
功耗 100 mW
触点额定电流 2 A
线圈电压 3 VDC
线圈电流 33.3 mA
线圈电阻 90 Ω
额定电流Max 2 A
线圈电压DC 3 V
线圈功率 100 mW
额定功率Max 60 W
开关电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 8
封装 DIP
长度 15 mm
宽度 8.2 mm
高度 8.2 mm
封装 DIP
触点材质 Silver
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490050
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TX2-L-3V Panasonic 松下 | 当前型号 | 当前型号 |
AGN21003 松下 | 类似代替 | TX2-L-3V和AGN21003的区别 |
AGQ26003 松下 | 类似代替 | TX2-L-3V和AGQ26003的区别 |
AGQ260A03 松下 | 类似代替 | TX2-L-3V和AGQ260A03的区别 |
