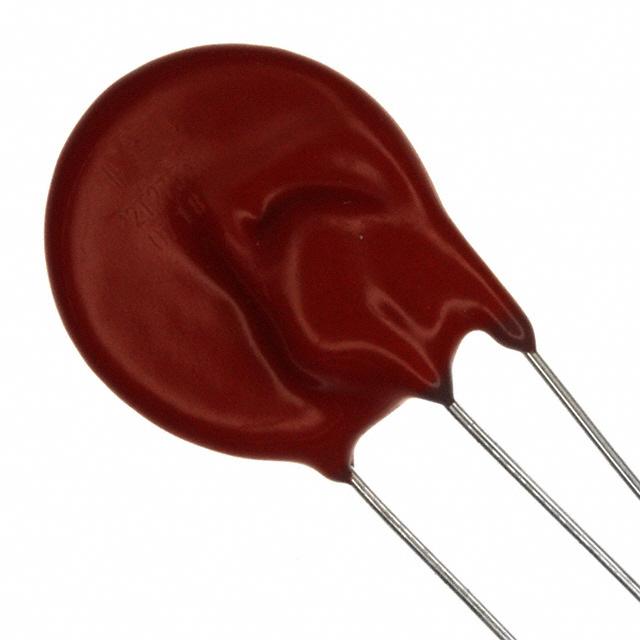

TMOV20RP175M

TMOV®系列 297 VDC 175V RMS 455V 钳位 10000A 1400pF 径向引线式压敏电阻

270 V 10 kA 变阻器 1 电路 通孔 圆片式 20mm，3 引线

得捷:
VARISTOR 270V 10KA DISC 20MM

立创商城:
TMOV20RP175M

艾睿:
Are you looking for a nonlinear resistor? This TMOV20RP175M MOV from Littelfuse will exceed your needs! This device&s;s clamping current is 100 A and clamping voltage is 455 V. Its maximum surge current is 10000 A. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. This device is made with metal oxide technology. This varistor has a voltage of 297 V. This product is 28 mm tall and 9 mm deep with a diameter of 23 mm. The maximum AC voltage rating is 175 VAC and the maximum DC voltage rating is 225 VDC. Its capacitance value is 0.0014uF.

Chip1Stop:
Var MOV 175VAC/225VDC 10000A 297V Radial Bulk

TME:
Varistor: metal-oxide; THT; 175VAC; 225VDC; 270V; 6.5kA; 135J

Verical:
Var MOV 175VAC/225VDC 10000A 297V Thru-Hole Pin Bulk

Newark:
# LITTELFUSE  TMOV20RP175M  TVS Varistor, 175 V, iTMOV Series, 455 V, Disc 20mm, Metal Oxide Varistor MOV

Win Source:
VARISTOR 270V 10KA DISC 20MM / 270 V 10 kA Varistor 1 Circuit Through Hole Disc 20mm 3-Lead
