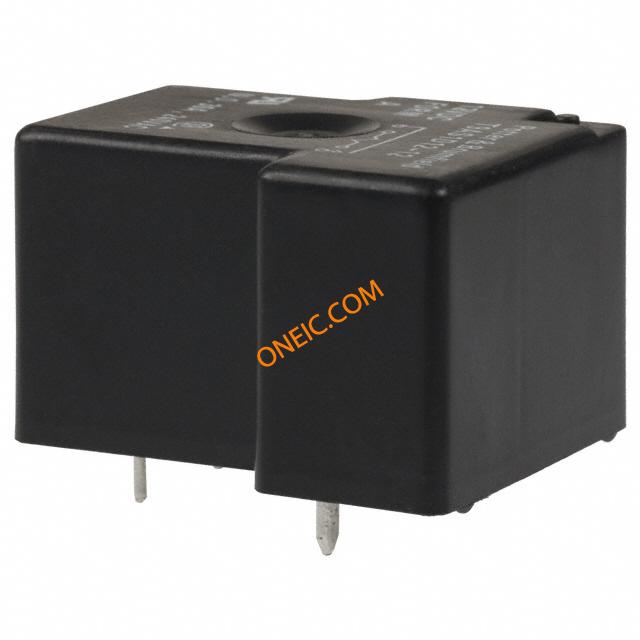

Power Relay 12VDC 30A SPST-NO 32.51mm 27.43mm 20.4mm Through Hole
T9A Power Relay, option for load connections via QC terminals. Standard 30 Amps global footprint.
得捷:
RELAY GEN PURPOSE SPST 30A 12V
艾睿:
Power Relay 12VDC 30A SPST-NO32.51x27.43x20.4mm THT
安富利:
Electromechanical Relay SPST-NO 30A 12VDC 155Ohm Through Hole
Chip1Stop:
Electromechanical Relay 12VDC 155Ohm 30A SPST-NO 32.51mm 27.43mm 20.4mm THT Industrial Relay
Verical:
Power Relay 12VDC 30A SPST-NO 32.51mm 27.43mm 20.4mm THT
MASTER:
Power Relay 12VDC 30A SPST-NO 32.51mm 27.43mm 20.4mm THT
Online Components:
Power Relay 12VDC 30A SPST-NO 32.51mm 27.43mm 20.4mm THT
Electro Sonic:
Power Relay 12VDC 30A SPST-NO32.51x27.43x20.4mm THT
功耗 900 mW
线圈电压 12 VDC
线圈电流 77 mA
线圈电阻 155 Ω
线圈电压DC 12 V
线圈功率 900 mW
开关电流Max 30 A
工作温度Max 85 ℃
工作温度Min -55 ℃
安装方式 Through Hole
长度 32.51 mm
宽度 27.43 mm
高度 20.4 mm
触点材质 Silver Cadmium Oxide
工作温度 -55℃ ~ 85℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536410050
