TMM-110-01-S-D

2mm 方针

针座 通孔 20 位置 0.079"（2.00mm）

立创商城:
2mm 方针

得捷:
CONN HEADER VERT 20POS 2MM

艾睿:

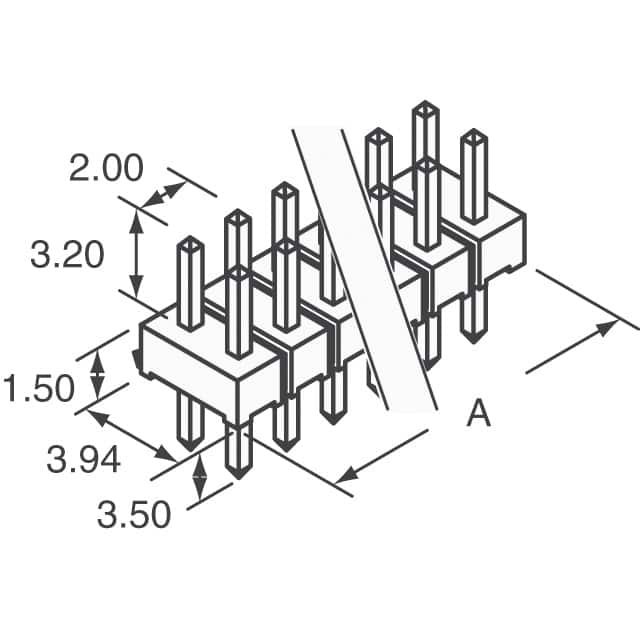

Samtec brings you their unshrouded TMM-110-01-S-D header connector, an important safety tool for protecting your electronic components from accidental damage. This HDR connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. It has a maximum voltage rating of 500 VAC. It has a straight body orientation. This is a 2-row connector. Its pitch is 2 mm. This device has a maximum current rating of 5.5 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 20 mm long, 4.7 mm tall and 3.94 mm deep. This connector has an operating temperature of -55 to 125 °C. TMM-110-01-S-D is housed in black liquid crystal polymer. It uses the solder termination method.

安富利:
Conn Unshrouded Header HDR 20 POS 2mm Solder ST Thru-Hole

Newark:
# SAMTEC  TMM-110-01-S-D  2mm TERMINAL STRIP
