CONN HEADER 14POS DBL 2MM SMD
Connector Header Surface Mount 14 position 0.079" 2.00mm
得捷:
CONN HEADER 14POS DBL 2MM SMD
艾睿:

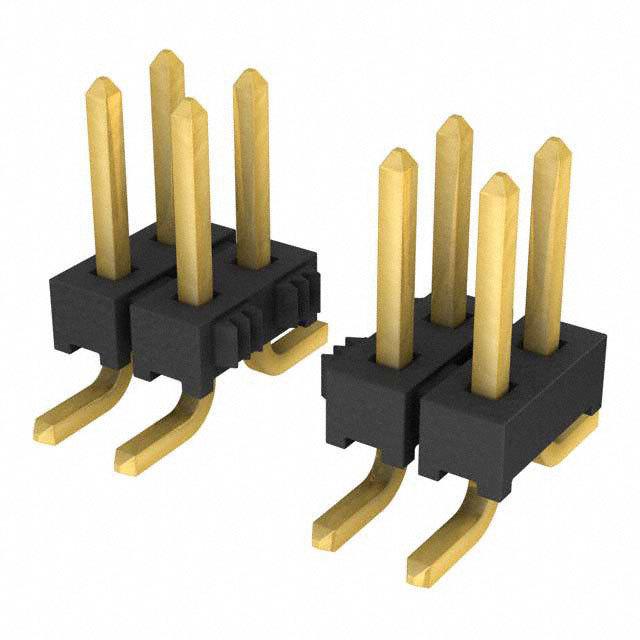

This unshrouded TMM-107-06-L-D-SM header connector from Samtec is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector&s;s 14 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. It has a maximum voltage rating of 500 VAC. This is a 2-row connector. Its pitch is 2 mm. It has a straight body orientation. This device has a maximum current rating of 3.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This product is 14 mm long, 7.04 mm tall and 7.06 mm deep. This connector has an operating temperature of -55 to 125 °C. TMM-107-06-L-D-SM is housed in black liquid crystal polymer.
安富利:
Conn Unshrouded Header HDR 14 POS 2mm Solder ST SMD Tube
Verical:
Conn Unshrouded Header HDR 14 POS 2mm Solder ST SMD Automotive Tube
Newark:
# SAMTEC TMM-107-06-L-D-SM 2mm TERMINAL STRIP
