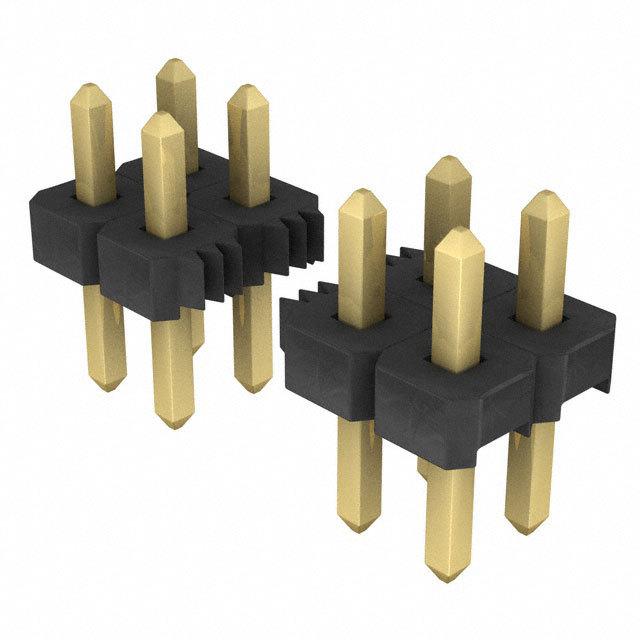

TLW-106-06-G-D

Conn Unshrouded Header HDR 12POS 2.54mm Solder ST Thru-Hole

Connector Header Through Hole 12 position 0.100" 2.54mm

欧时:
HEADER VERT 2 ROW 12POS

得捷:
CONN HEADER VERT 12POS 2.54MM

艾睿:
Use this unshrouded TLW-106-06-G-D header connector from Samtec where IDC ribbon cables are used. This HDR connector&s;s 12 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. This is a 2-row connector. It has a straight body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 5.2 A/contact. This product is 15.24 mm long, 4.19 mm tall and 5.03 mm deep. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. TLW-106-06-G-D is housed in black liquid crystal polymer.

安富利:
Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk

Newark:
# SAMTEC  TLW-106-06-G-D  LOW PROFILE .025 SQ STRIPS
