Vishay TLUx24xx 1.8mm、TLUx44xx 3mm、TLUx53xx 5mm、TLUx54xx 5mm 和 TLUx64xx 5mm 系列 LED### 可见光 LED,Vishay

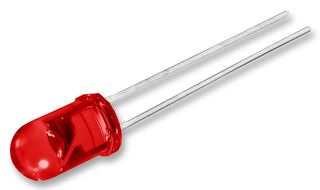

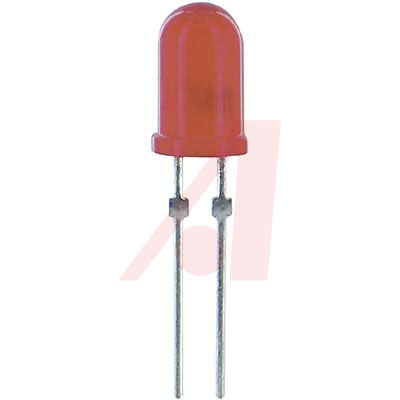

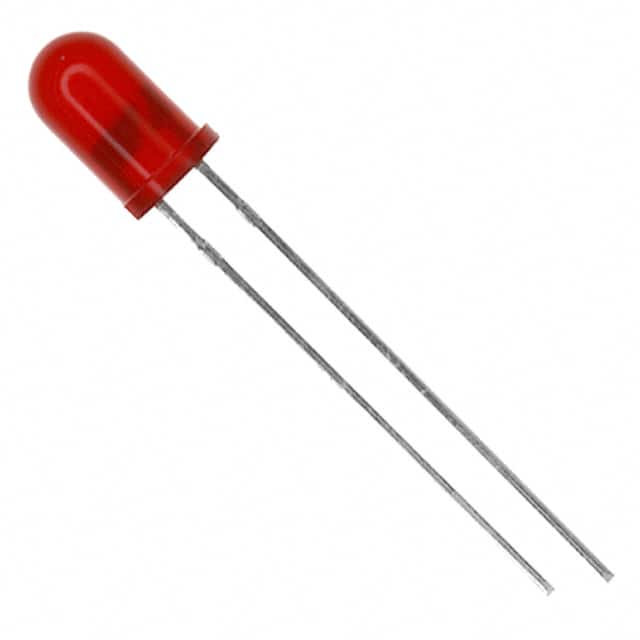

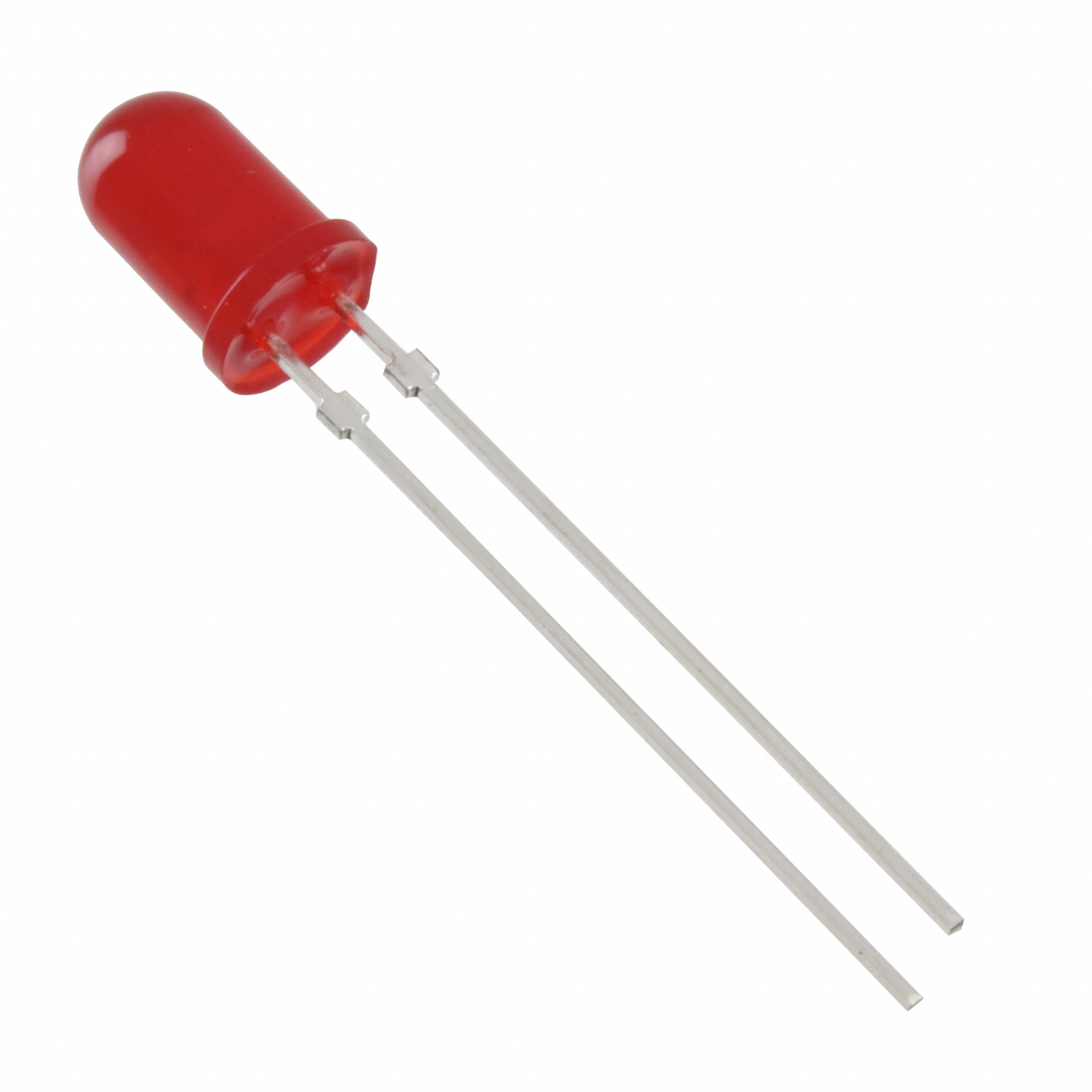

Universal , Tinted Diffused Miniplast Package, Red Color
* For DC and pulse operation
* Luminous intensity categorized
* Standard T-1-3/4 package
* TLUR54 with stand-offs
* Lead-free device
For DC and pulse operation, luminous intensity categorized, standard T-1-3/4 package, TLUR54 with stand-offs, lead-free device
得捷:
LED RED DIFFUSED T-1 3/4 T/H
贸泽:
Standard LEDs - Through Hole Red Tinted Diffused
艾睿:
LED Uni-Color Red 640nm 2-Pin T-1 3/4
TME:
LED; 5mm; red; 4-15mcd; 30°; Front: convex; Pitch:2.54mm
Verical:
LED Uni-Color Red 640nm 2-Pin T-1 3/4
Newark:
# VISHAY TLUR5400 LED, Red, Through Hole, T-1 3/4 5mm, 20 mA, 2 V, 630 nm
AMEYA360:
Vishay 5mm T-1 3/4 红色 LED, 15 mcd ±30 ° 通孔
工作电压 2V ~ 3V
额定功率 60 mW
针脚数 2
正向电压 2 V
波长 630 nm
发光强度 15 mcd
视角 30°
峰值波长 640 nm
耗散功率 60 mW
测试电流 10 mA
正向电流 20 mA
工作温度Max 100 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 2
封装 T-1-3
长度 5.8 mm
宽度 5.8 mm
高度 12.80 mm
脚长度 25.0 mm
封装 T-1-3
颜色 Red
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Bulk
制造应用 Signalling, Lighting
RoHS标准 RoHS Compliant
含铅标准 无铅
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLUR5400 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
TLUR5401 威世 | 完全替代 | TLUR5400和TLUR5401的区别 |
