TEN 40-1234概述

TRACOPOWER TEN 40-1234 Isolated Board Mount DC-DC Converter, Metal Case, Fixed, 3 Output, 9V, 18V, 40W, 3.3V

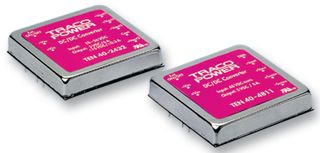

**Traco 40W Single/Triple Output Regulated Isolated DC-DC Converter - TEN 40 Series**

40W single/triple output regulated isolated DC-DC converters with a high power density. These single/triple output regulated isolated DC-DC converters have a high efficiency which allow an operating temperature range from -40°C to + 70°C. This series of single/triple output regulated isolated DC-DC converters are suitable for use in communication systems, industrial electronics and distributed power systems.


Allied Electronics:
DC/DC Converter Isolated 3.3+/-15V 28.8W


Newark:
# TRACOPOWER  TEN 40-1234  Isolated Board Mount DC/DC Converter, Metal Case, Fixed, 3 Output, 9 V, 18 V, 40 W, 3.3 V


TEN 40-1234中文资料参数规格
技术参数

额定功率 40.0 W

输入电压DC 9.00V ~ 18.0V

输出电压 3.30 V

输出电流 6.00 A

输入电压DC Max 18 V

输入电压DC Min 9 v

输出功率Max 40 W

封装参数

安装方式 Through Hole

外形尺寸

宽度 50.8 mm

高度 10.2 mm

其他

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

REACH SVHC版本 2015/12/17

数据手册

在线购买TEN 40-1234
型号: TEN 40-1234
制造商: Traco Electronic
描述:TRACOPOWER TEN 40-1234 Isolated Board Mount DC-DC Converter, Metal Case, Fixed, 3 Output, 9V, 18V, 40W, 3.3V
