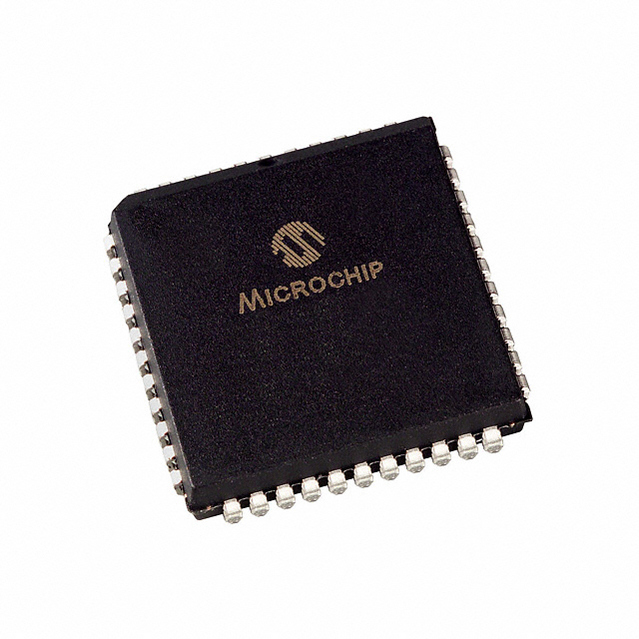

15位，快速集成CMOS A / D转换器 15-Bit, Fast Integrating CMOS A/D Converter
Technology offers this ADC that will easily convert your continuous analog signals into digital data without altering essential content. It has a differential input signal. This device"s digital interface is parallel. This device is based on Multi-Slope architecture. Its maximum power dissipation is 1230 mW. This ADC has a resolution of 15bit+Sign. This ADC has an input voltage of 3.277 V. Its typical dual supply voltage is ±5 V. This ADC has a minimum operating temperature of 0 °C and a maximum of 70 °C.
电源电压DC 4.00V min
额定功率 20.0 mW
输出电压 4.90 V
供电电流 2.00 mA
电路数 1
通道数 1
位数 15
耗散功率 1230 mW
采样率 40 SPS
模数转换数ADC 1
输入数 1
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 1230 mW
输入通道数 1
电源电压Max 5 V
输入电压 3.277 V
安装方式 Surface Mount
引脚数 44

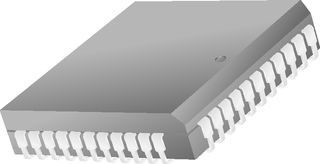

封装 PLCC-44
长度 16.59 mm
宽度 16.59 mm
高度 3.87 mm
封装 PLCC-44
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TC850CLW Microchip 微芯 | 当前型号 | 当前型号 |
TC850ILW 微芯 | 完全替代 | TC850CLW和TC850ILW的区别 |
TC850CLW713 微芯 | 完全替代 | TC850CLW和TC850CLW713的区别 |
