TC54 电压监控器### 微处理器电源电压监控和复位电路 - Microchip
TC54 电压监控器
欧时:

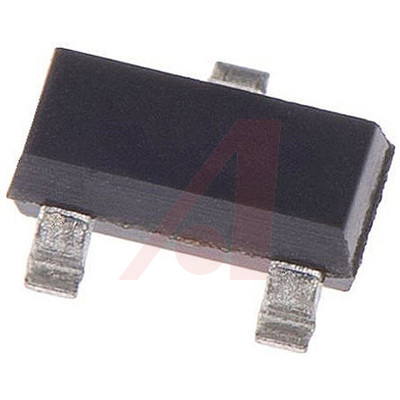

Microchip TC54VN2102ECB713 电压监控器, 2.06 至 2.14 V监控电压, 多种输出驱动, 3引脚 SOT-23A封装
得捷:
IC SUPERVISOR 1 CHANNEL SOT23A-3
立创商城:
TC54VN2102ECB713
艾睿:
This voltage detector TC54VN2102ECB713 voltage monitor IC from Microchip Technology protects your sensitive components from hazardous conditions. This device has a maximum power dissipation of 240 mW. Its maximum power dissipation is 240 mW. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a typical reset threshold voltage of 2.1 V, with a minimum of 2.06 V and a maximum of 2.14 V. This device has a minimum operating supply voltage of 0.7 V and a maximum of 10 V. This voltage supervisor IC has a minimum operating temperature of -40 °C and a maximum of 85 °C.
Allied Electronics:
Microchip TC54VN2102ECB713; Voltage Supervisor 2.06 to 2.14 V; 3-Pin SOT-23A
安富利:
Volt Supervisor Detect 1.1V to 6V 3-Pin SOT-23A T/R
Chip1Stop:
Processor Supervisor 2.1V 7V to 10V 1 Open Drain 3-Pin SOT-23A T/R
Verical:
Processor Supervisor 2.1V 1 Active Low/CMOS/Open Drain 3-Pin SOT-23A T/R
Newark:
# MICROCHIP TC54VN2102ECB713 Voltage Detector, 0.7V-10V supply, 2.1V Threshold, 200 µs Delay, Active-Low, Open-Drain, SOT-23A-3
儒卓力:
**DETECTOR 2,1V 1µA 2% SOT23-3L **
Online Components:
Processor Supervisor 2.1V 1 Open Drain 3-Pin SOT-23A T/R
Win Source:
Supervisor Open Drain or Open Collector 1 Channel SOT-23A-3
DeviceMart:
IC VOLT DET NCH OD 2.1V SOT23A-3
电源电压DC 700mV min
耗散功率 240 mW
静态电流 1.10 µA
阈值电压 2.1 V
复位电压Min 2.06 V
复位电压Max 2.14 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 240 mW
电源电压 10 V
电源电压Max 10 V
电源电压Min 0.7 V
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 3.1 mm
宽度 1.8 mm
高度 1.3 mm
封装 SOT-23-3
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TC54VN2102ECB713 Microchip 微芯 | 当前型号 | 当前型号 |
TC54VC2102ECB713 微芯 | 完全替代 | TC54VN2102ECB713和TC54VC2102ECB713的区别 |
TC54VN2102EZB713 微芯 | 完全替代 | TC54VN2102ECB713和TC54VN2102EZB713的区别 |
TC54VC2102EZB 微芯 | 类似代替 | TC54VN2102ECB713和TC54VC2102EZB的区别 |
