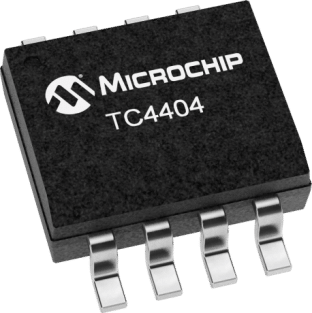

1.5A双漏极开路MOSFET驱动器 1.5A Dual Open-Drain MOSFET Drivers
低端 栅极驱动器 IC 反相 8-SOIC
得捷:
IC GATE DRVR LOW-SIDE 8SOIC
立创商城:
低边 IGBT MOSFET 灌:1.5A 拉:1.5A
艾睿:
Ideal for a make and break circuit this TC4404EOA power driver manufactured by Microchip Technology will allow you to implement a transistor rather than a relay! This device has a maximum propagation delay time of 50 ns and a maximum power dissipation of 470 mW. Its maximum power dissipation is 470 mW. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device has a minimum operating supply voltage of 4.5 V and a maximum of 18 V. This gate driver has an operating temperature range of -40 °C to 85 °C.
Allied Electronics:
1.5A Dual Open-Drain MOSFET8 SOIC 3.90mm.150in TUBE
安富利:
MOSFET DRVR 1.5A 2-OUT Lo Side Inv 8-Pin SOIC N Tube
Chip1Stop:
Driver 1.5A 2-OUT Low Side Inv 8-Pin SOIC N Tube
Verical:
Driver 1.5A 2-OUT Lo Side Inv 8-Pin SOIC N Tube
Newark:
# MICROCHIP TC4404EOA MOSFET Driver, Low Side, 4.5V-18V supply, 1.5A and 7 ohm output, SOIC-8
电源电压DC 4.50V min
上升/下降时间 40ns Max
输出接口数 2
耗散功率 470 mW
下降时间Max 30 ns
上升时间Max 30 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 470 mW
电源电压 4.5V ~ 18V
电源电压Max 18 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
封装 SOIC-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TC4404EOA Microchip 微芯 | 当前型号 | 当前型号 |
TC4404EOA713 微芯 | 完全替代 | TC4404EOA和TC4404EOA713的区别 |
TC4404COA 微芯 | 类似代替 | TC4404EOA和TC4404COA的区别 |
TC4404COA713 微芯 | 类似代替 | TC4404EOA和TC4404COA713的区别 |
