TC1017 低压降电压稳压器### LDO(低压降)线性稳压器,Microchip
TC1017 低压降电压稳压器
### LDO(低压降)线性稳压器,
得捷:
IC REG LINEAR 1.8V 150MA SOT23-5
立创商城:
TC1017-1.8VCTTR
欧时:
Microchip TC1017-1.8VCTTR LDO 稳压器, 1.8 V输出, 150mA最大输出, ±0.5%精确度, 2.7 → 6 V输入
贸泽:
LDO Voltage Regulators 150mA CMOS LDO
艾睿:
Never worry about components seeing unstable voltages again by implementing this LDO TC1017-1.8VCTTR linear regulator manufactured by Microchip Technology. It has an overall accuracy of ±0.5 %. Its typical dropout voltage at current is 0.002@100uA|0.09@50mA|0.18@100mA|0.285@150mA V. This voltage regulation device&s;s single output can produce a current up to 0.15Min A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.7 V and no higher than 6 V. With a fixed output that has a voltage of 1.8 V, this is power management at its best. Users like the load regulation of 0.38%Typ and line regulation of 0.04%/VTyp. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. The maximum dropout voltage is 0.2@50mA|0.35@100mA|0.5@150mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
Allied Electronics:
Regulator, 1.8V 150mA LDO with Shutdown, SOT-23-5
安富利:
LDO Regulator Pos 1.8V 0.15A 5-Pin SOT-23 T/R
富昌:
TC1017 Series 150 mA 1.8 V Fixed Output LDO Regulator w/ Shutdown - SOT-23-5
TME:

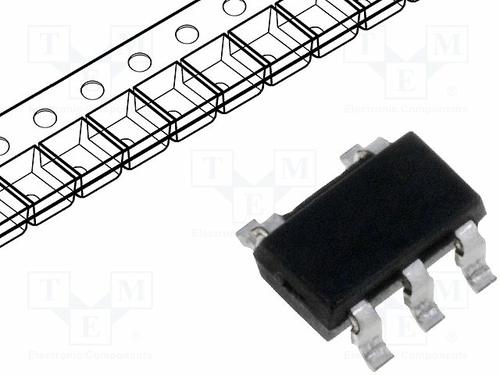

Voltage regulator; LDO, fixed; 1.8V; 0.15A; SOT23-5; SMD; -40÷125°C
Verical:
LDO Regulator Pos 1.8V 0.15A Automotive 5-Pin SOT-23 T/R
Newark:
# MICROCHIP TC1017-1.8VCTTR Fixed LDO Voltage Regulator, 2.7V to 6V, 285mV Dropout, 1.8Vout, 150mAout, SOT-23-5
Online Components:
LDO Regulator Pos 1.8V 0.15A Automotive 5-Pin SOT-23 T/R
工作电压 2.7V ~ 6V
输出接口数 1
输入电压DC 2.70V min
输出电压 1.8 V
输出电流 150 mA
供电电流 53 μA
耗散功率 157 mW
静态电流 53.0 µA
输出电容类型 Ceramic
跌落电压 285 mV
输入电压Max 6 V
输入电压Min 2.7 V
输出电压Min 1.8 V
输出电流Max 150 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.5 %
输入电压 6 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
长度 3.1 mm
宽度 1.8 mm
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TC1017-1.8VCTTR Microchip 微芯 | 当前型号 | 当前型号 |
TC2015-1.8VCTTR 微芯 | 完全替代 | TC1017-1.8VCTTR和TC2015-1.8VCTTR的区别 |
TC2014-1.8VCTTR 微芯 | 完全替代 | TC1017-1.8VCTTR和TC2014-1.8VCTTR的区别 |
TC1016-1.8VCTTR 微芯 | 完全替代 | TC1017-1.8VCTTR和TC1016-1.8VCTTR的区别 |
