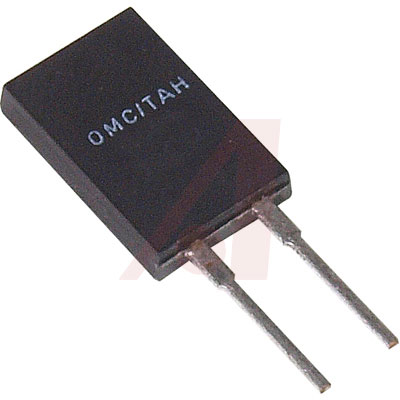

TAH20PR050JE

厚膜电阻 50mΩ ±5% 20W

**Electrical Specifications. Resistance Tolerance:** ±5. **Max. Operating Voltage:** 350 V. **Dielectric Strength:** 1800 VAC. **Insulation Resistance:** 10G Ohms min. and 500 V. **Power Rating:** 20 W at 25°C. **Mounting:** Requires use of a snap-on heat sink. A thermal compound should be properly applied.

**Features:**

* 20 Watts @ 25°C Case Temperature

* High Pulse Tolerant Design

* Quick-Snap Molded Package

* Very Low Inductance Design

* Resistor Package Electrically Isolated from Heat Sink

* Low Thermal Resistance to Heat Sink

**Applications:**

* Frequency Conversion

* High Frequency Balancing

* Snubbers
