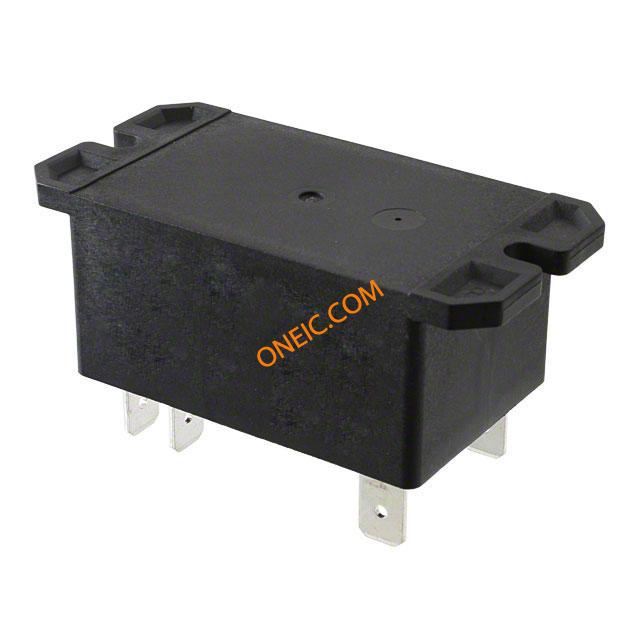

通用继电器 T92S7A22-208
Power Relay 30A DPST-NO 68.58mm 34.54mm 37.97mm Flange
艾睿:
Power Relay 30A DPST-NO 68.58mm 34.54mm 37.97mm Flange
Allied Electronics:
T92S7A22-208, 1393212-3
安富利:
Electromechanical Relay DPST-NO 40A 200/208VAC 2.841KOhm Flange Mount
Chip1Stop:
Electromechanical Relay DPST-NO 40A 200/208VAC 2.841KOhm Flange Mount
Verical:
Power Relay 30NO/3NCA DPST-NO68.58mm 34.54mm 37.97mm Flange
MASTER:
Power Relay 30NO/3NCA DPST-NO68.58mm 34.54mm 37.97mm Flange
Online Components:
Power Relay 30A DPST-NO 68.58mm 34.54mm 37.97mm Flange
Electro Sonic:
Power Relay 30NO/3NCA DPST-NO68.58mm 34.54mm 37.97mm Flange
Win Source:
RELAY GEN PURPOSE DPST 30A 208V / General Purpose Relay DPST-NO 2 Form A 208VAC Coil Chassis Mount
触点类型 DPST-NO
线圈电压 208 VAC
线圈电流 19.2 mA
线圈电压AC 208 V
线圈电阻 2.841 KΩ
载流 30.0 A
线圈功率 4 VA
开关电流Max 30 A
工作温度Max 65 ℃
工作温度Min -55 ℃
安装方式 Quick Connect, Chassis
长度 68.58 mm
宽度 34.54 mm
高度 37.97 mm
触点材质 Silver Cadmium Oxide
工作温度 -55℃ ~ 65℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536410050
