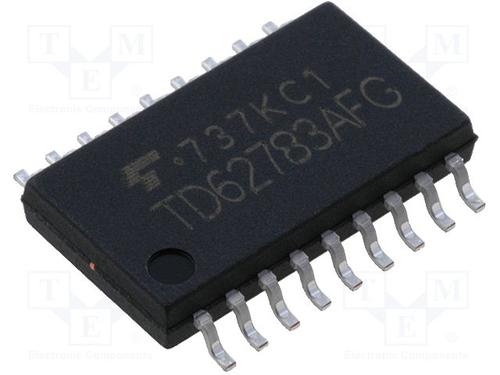

TD62783AFG

SOP NPN+PNP 0.5A

8 ch High-Voltage Source Driver

The TD62783APG/AFG Series are comprised of eight source current Transistor Array.

These drivers are specifically designed for fluorescent display applications.

Applications include relay, hammer and lamp drivers. The suffix G appended to the part number represents a Lead Pb-Free product.

Features

•  High output voltage: VCC =50 V min

•  Output current single output: IOUT = −500 mA min

•  Output clamp diodes

•  Single supply voltage

•  Input compatible with various types of logic

•  Package type-APG: DIP-18 pin

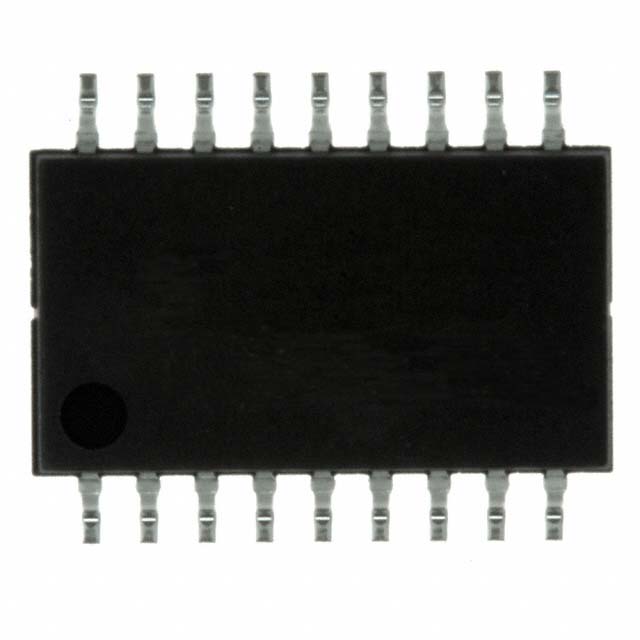

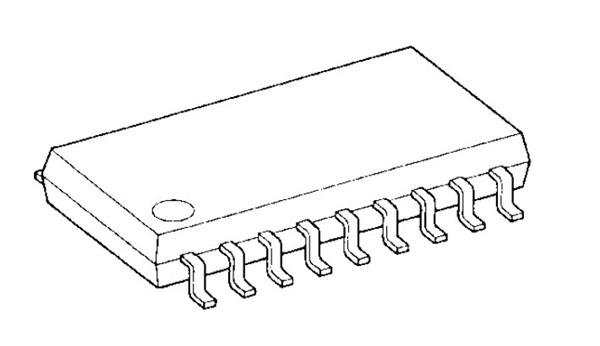

•  Package type-AFG: SOP-18 pin
