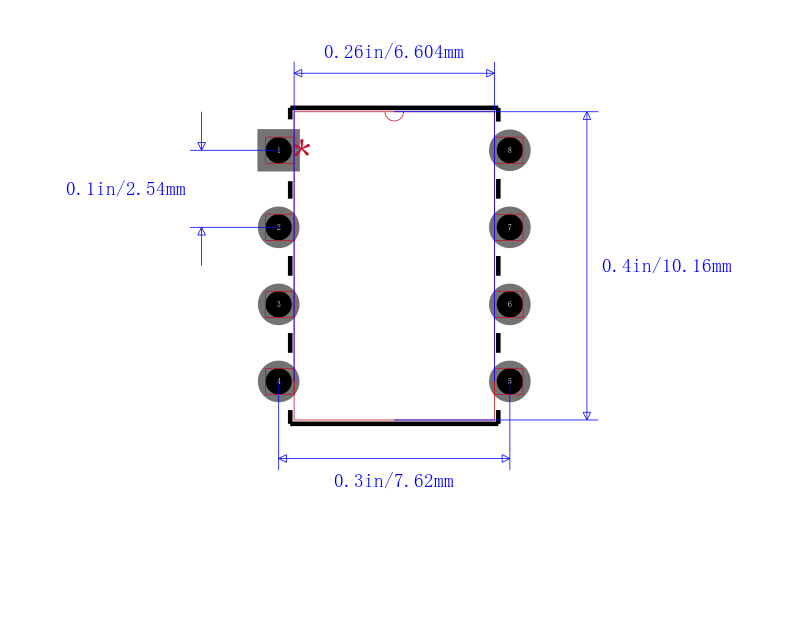

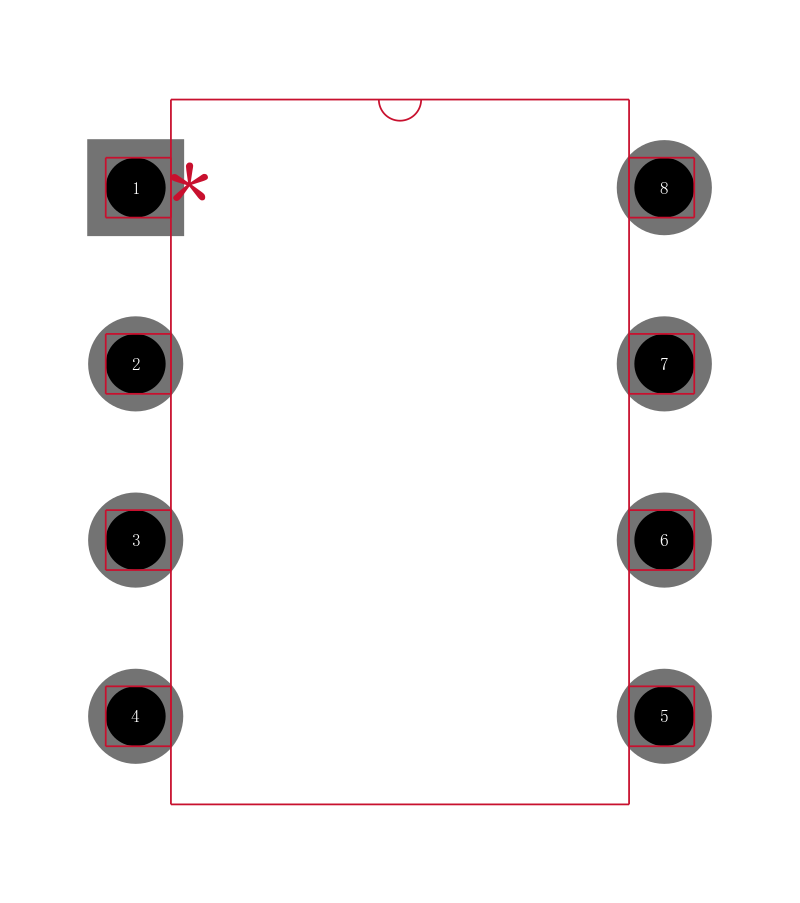

TLC372CPE4

模拟比较器 Dual LinCMOS Differential

description

This device is fabricated using LinCMOS technology and consists of two independent voltage comparators, each designed to operate from a single power supply. Operation from dual supplies is also possible if the difference between the two supplies is 2 V to 18 V. Each device features extremely high input impedance typically greater than 1012Ω, allowing direct interfacing with high-impedance sources. The outputs are n-channel open-drain configurations and can be connected to achieve positive-logic wired-AND elationships.

Single or Dual-Supply Operation

Wide Range of Supply Voltages 2 V to 18 V

Low Supply Current Drain 150 µA Typ at 5 V

Fast Response Time. . . 200 ns Typ for TTL-Level Input Step

Built-in ESD Protection

High Input Impedance...1012Ω Typ

Extremely Low Input Bias Current 5 pA Typ

Ultrastable Low Input Offset Voltage

Input Offset Voltage Change at Worst-Case Input Conditions Typically 0.23 µV/Month, Including the First 30 Days

Common-Mode Input Voltage Range Includes Ground

Output Compatible With TTL, MOS, and CMOS

Pin-Compatible With LM393
