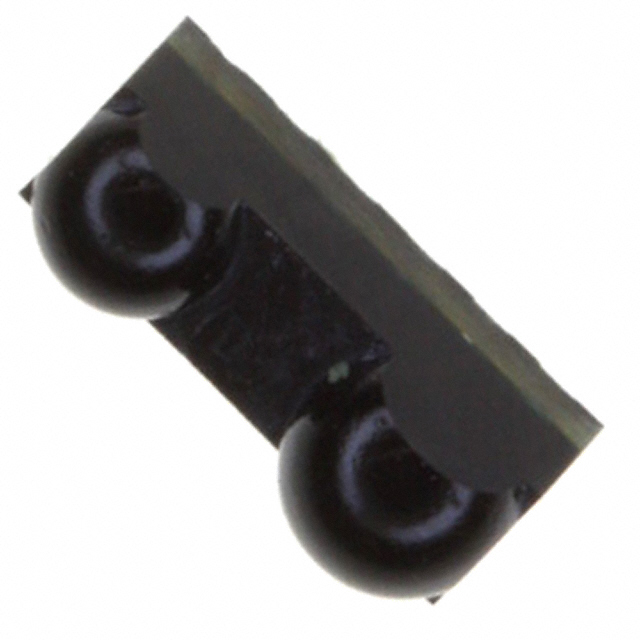

VISHAY TFBS4711-TR1 收发器, IRDA
The is a low profile serial Infrared Data Transceiver SIR Module supports IrDA data rates up to 115.2kbit/s SIR. This transceiver module consists of a PIN photodiode, an infrared emitter IRED and a low-power CMOS control IC to provide a total frontend solution. The device is designed for the low power IrDA standard with an extended range on-axis up to 1m. The RXD pulse width is independent of the duration of TXD pulse and always stays at a fixed width thus making the device optimum for all standard SIR encoder/decoder and interfaces. The shut down SD feature cuts current consumption to typically 10nA.
电源电压DC 2.40V min
上升/下降时间 10 ns
供电电流 600 µA
波长 900 nm
输入电流 10 mA
峰值波长 900 nm
耗散功率 250 mW
数据速率 115 kbps
上升时间 300 ns
正向电流Max 80 mA
下降时间 300 ns
下降时间Max 300 ns
上升时间Max 300 ns
工作温度Max 85 ℃
工作温度Min -25 ℃
电源电压 2.7V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.4 V
安装方式 Surface Mount
引脚数 6
封装 SMD
长度 6 mm
宽度 1.9 mm
高度 3 mm
封装 SMD
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 工业, 计算机和计算机周边, Industrial, Imaging, Video & Vision, 消费电子产品, Medical, 成像, 视频和目视, 医用, Consumer Electronics, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TFBS4711-TR1 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
TFBS4711-TT1 威世 | 类似代替 | TFBS4711-TR1和TFBS4711-TT1的区别 |
