TAJW156K020RNJ

TAJ 薄型系列电容容差：10% Dimensions mm --- Case Code | L | W | H | W1 | A Tolerance | ±0.2 | +0.2 // -0.1 | Max | +0.1 | +0.3 // -0.1 P | 2.05 | 1.35 | 1.5 | 1.0 | 0.5 R | 2.05 | 1.3 | 1.2 | 1.2 | 0.5 S | 3.2 | 1.6 | 1.2 | 1.2 | 0.8 T | 3.5 | 2.8 | 1.2 | 2.2 | 0.8 W | 6.0 | 3.2 | 1.5 | 2.2 | 1.3 Y | 7.3 | 4.3 | 2.0 | 2.4 | 1.3 ### 表面安装 85 ° C

TAJ 薄型系列

容差：10%

尺寸 mm

---

外壳代码 | L | W | H | W1 | A

容差 | ±0.2 | +0.2 // -0.1 | 最大值 | +0.1 | +0.3 // -0.1

P | 2.05 | 1.35 | 1.5 | 1.0 | 0.5

R | 2.05 | 1.3 | 1.2 | 1.2 | 0.5

S | 3.2 | 1.6 | 1.2 | 1.2 | 0.8

T | 3.5 | 2.8 | 1.2 | 2.2 | 0.8

W | 6.0 | 3.2 | 1.5 | 2.2 | 1.3

Y | 7.3 | 4.3 | 2.0 | 2.4 | 1.3

欧时:
### TAJ 薄型系列电容容差：10% Dimensions mm --- Case Code | L | W | H | W1 | A Tolerance | ±0.2 | +0.2 // -0.1 | Max | +0.1 | +0.3 // -0.1 P | 2.05 | 1.35 | 1.5 | 1.0 | 0.5 R | 2.05 | 1.3 | 1.2 | 1.2 | 0.5 S | 3.2 | 1.6 | 1.2 | 1.2 | 0.8 T | 3.5 | 2.8 | 1.2 | 2.2 | 0.8 W | 6.0 | 3.2 | 1.5 | 2.2 | 1.3 Y | 7.3 | 4.3 | 2.0 | 2.4 | 1.3 ![http://china.rs-online.com/largeimages/L405941-01.gif]http://china.rs-online.com/largeimages/L405941-01.gif ### 表面安装 85 ° C

艾睿:

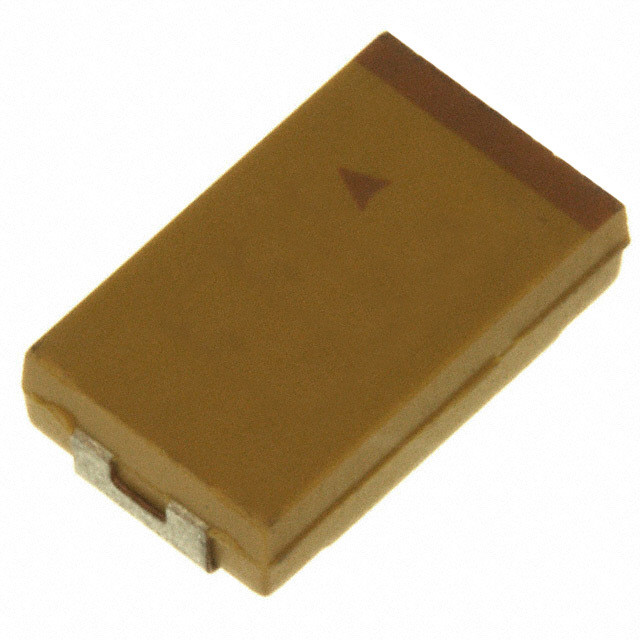

Cap Tant Solid 15uF 20V W CASE 10% 6 X 3.2 X 1.5mm Inward L SMD 6032-15 1.7 Ohm 125°C T/R

Allied Electronics:

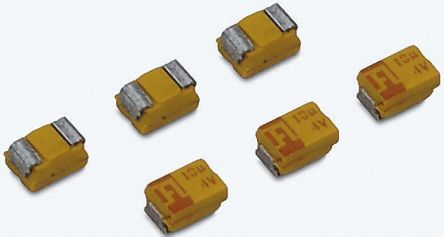

15uF SMD Solid MnO2 Tantalum Capacitor, 20 V dc +/-10%, TAJ Series

安富利:
Cap Tant Solid 15uF 20V W CASE 10% 6 X 3.2 X 1.5mm SMD 6032-15 1.7 Ohm 125°C T/R

Newark:
# AVX  TAJW156K020RNJ  Surface Mount Tantalum Capacitor, 15 µF, 20 V, TAJ Series, ± 10%, 2312 [6032 Metric] New
