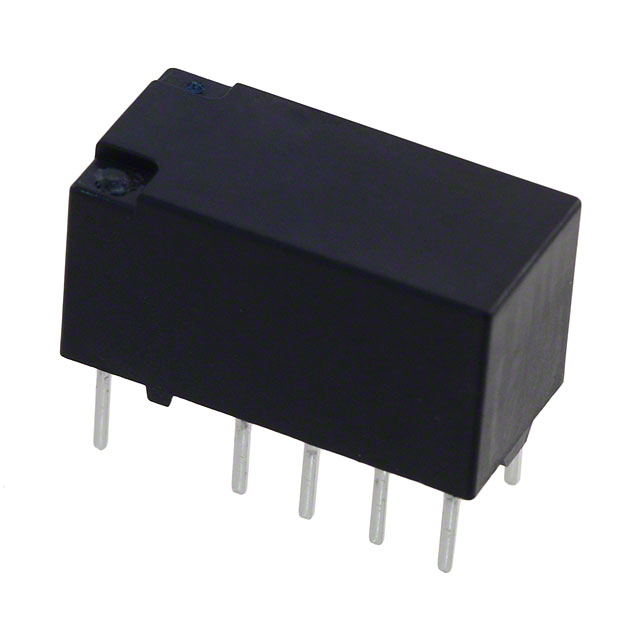

TX2-L-4.5V

TX 系列 2 A 双刀双掷 4.5 VDC 单线圈 闭锁 PCB 通孔 信号继电器

FEATURES

1\. 2,000 V breakdown voltage between contact and coil

   The body block construction of the coil that is sealed at formation offers a high breakdown voltage of 2,000 V between contact and coil, and 1,000 V between open contacts.

2\. Outstanding surge resistance

  Surge breakdown voltage between open contacts: 1,500 V 10160sec. FCC part 68

  Surge breakdown voltage between contact and coil: 2,500 V 210sec. Bellcore

3\. Nominal operating power: High sensitivity of 140mW

  By using the highly efficient polar magnetic circuit “seesaw balance mechanism”, a nominal operating power of 140 mW minimum operating power of 79 mW has been achieved.

4\. High contact capacity: 2 A 30 V DC

5\. Compact size

  15.0L 7.4W 8.2H .

  591L .291W .323H

6\. The use of gold-clad twin crossbar contacts ensures high contact reliability.



.

We also offer a range of products with AgPd contacts suitable for use in low level load analog circuits max. 10V DC 10 mA.

7\. Outstanding vibration and shock resistance

  Functional shock resistance: 750 m/s2

  Destructive shock resistance: 1,000 m/s2

  Functional vibration resistance: 10 to 55 Hz at double amplitude of 3.3 mm .130 inch

  Destructive vibration resistance: 10 to 55 Hz at double amplitude of 5 mm .197 inch

8\. Sealed construction allows automatic washing.

9\. A range of surface-mount types is also available

  SA: Low-profile surface-mount terminal type

  SS: Space saving surface-mount terminal type

TYPICAL APPLICATIONS

1\. Communications xDSL, Transmission

2\. Measurement

3\. Security

4\. Home appliances, and audio/visual equipment

5\. Automotive equipment

6\. Medical equipment
