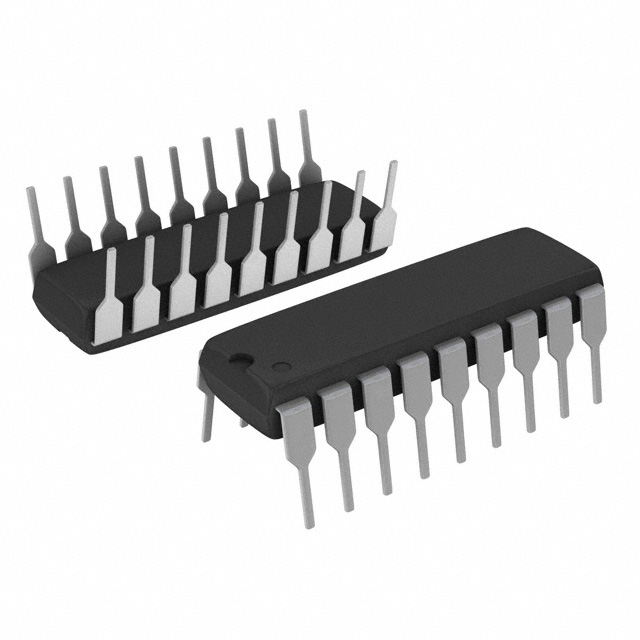

TD62083APG

PDIP NPN 50V 0.5A

The TD62081APG/AFG Series are high-voltage, high-current darlington drivers comprised of eight NP darlington pairs. All units feature integral clamp diodes for switching inductive loads. Applications include relay, hammer, lamp and display LED  drivers. The suffix G appended to the part number represents a Lead Pb-Free product.

Features

Output current single output 500 mA max  TD62081APG/AFG series

High sustaining voltage output 50 V min  TD62081APG/AFG series

Output clamp diodes

Inputs compatible with various types of logic.

Package type-APG: DIP-18 pin

Package type-AFG: SOP-18 pin
