TLE4209G

0.8A DC伺服电机驱动器

Description:

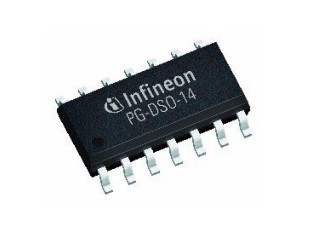

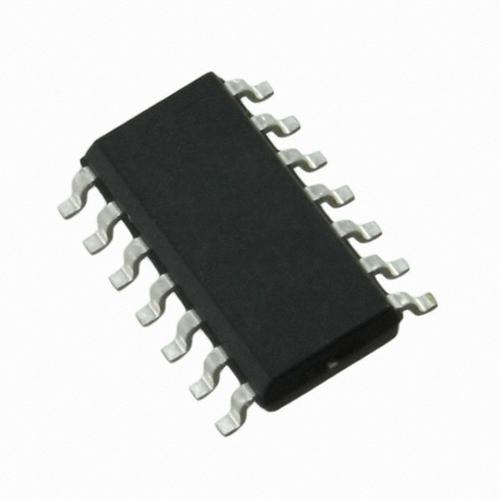

The is a protected H-Bridge Driver designed specifically for automotive manual headlight beam control and industrial servo control applications with DC-brush motor loads. The part is built using the bipolar high voltage power technology DOPL. The standard enhanced power PG-DSO-14-22 package meets the application requirements and saves PCBboard space and costs. The package is lead- and halogen-free. The servo-loop-parameter pos.- and neg. Hysteresis, pos.- and neg. deadband and angle-amplification are programmable with external resistors. An internal window-comparator controls the input line. In the case of a fault condition, like short circuit to GND, short circuit to supply-voltage, and broken wire, the TLE4209G stops the motor immediately brake condition. Furthermore the built in features like over- and under voltage-lockout, short-circuit-protection and overtemperature- protection will open a wide range of automotive- and industrial applications.

Summary of Features:

.

Optimized for manual headlight beam control applications

.

Delivers up to 0.7 A continuous

.

Low saturation voltage; typ.1.6 V total @ 25 °C; 0.7 A

.

Output protected against short circuit

.

Over temperature protection with hysteresis

.

Over- and under voltage lockout

.

Internal clamp diodes

.

Enhanced SMD power package

.

Green Product RoHS compliant

.

AEC Qualified

Benefits:

.

Amplification and angle shift can be adjusted with external resistors

.

Range Input to protect reference potentiometer against short circuit
