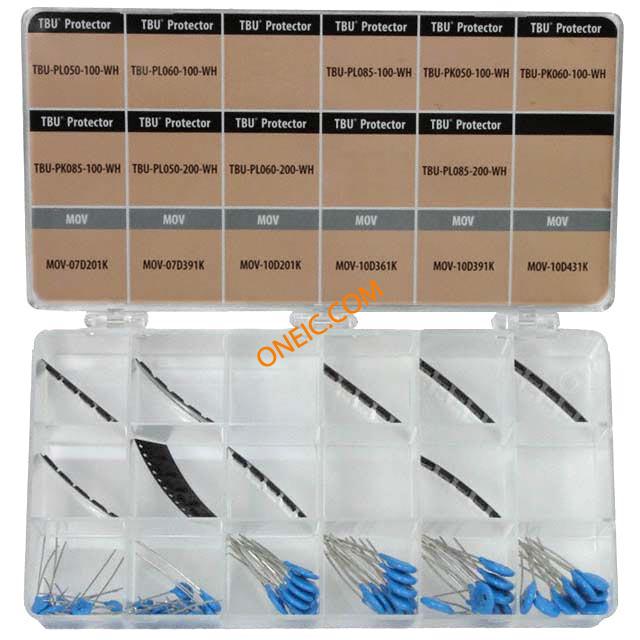

TBU-LAB1 - SLIC Protection Design KitBourns® TBU® SLIC protection TBU-LAB1 Design kit containing high-speed devices that provide protection against transients caused by short circuits, AC power cross, induction and lightning surges. The Transient Blocking Unit TBU blocks surges providing a barrier to sensitive electronics and eliminating exposure to large voltages or currents during surge events. Consequently the let-through energy to sensitive load electronics is low and prevents damage within rated limits. The TBU device resets to its normal state after the surge subsides.Extremely high-speed performance GHz data rate compatible Blocks high voltages and transient currents Very high bandwidth Small size requires Minimal PCB area Exceeds ITU-T K.20, K.21, K.45 & Telcordia GR-1089 requirementsApplications include: xDSL linecards; POTS and xDSL combo linecards; Access network equipment; T1/E1 and T3/E3 equipment; Ethernet port protection; Broadband modems and gateways; Industrial controls and sensors; Test and instrumentation equipmentKit Contents --- TBU® SLIC VOiP Protection Design Kit | Parts Per Kit TBU-PL050-100-WH | 5 TBU-PL060-100-WH | 5 TBU-PL075-100-WH | 5 TBU-PL085-100-WH | 5 TBU-PK050-100-WH | 5 TBU-PK060-100-WH | 5 TBU-PK085-100-WH | 5 TBU-PL050-200-WH | 5 TBU-PL060-200-WH | 5 TBU-PL075-200-WH | 5 TBU-PL085-200-WH | 5 MOV-07D201K | 10 MOV-07D391K | 10 MOV-10D201K | 10 MOV-10D361K | 10 MOV-10D391K | 10 MOV-10D431K | 10 | TOTAL | 115 ### 内容115 pcs - 17 values### 瞬态电压抑制器
- SLIC Protection Design Kit

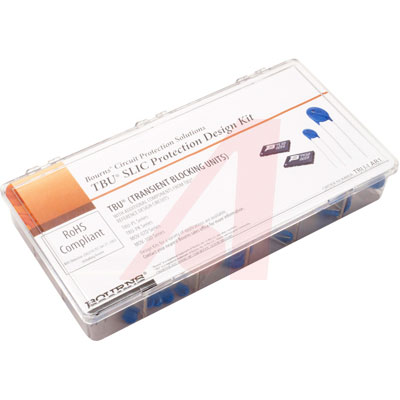

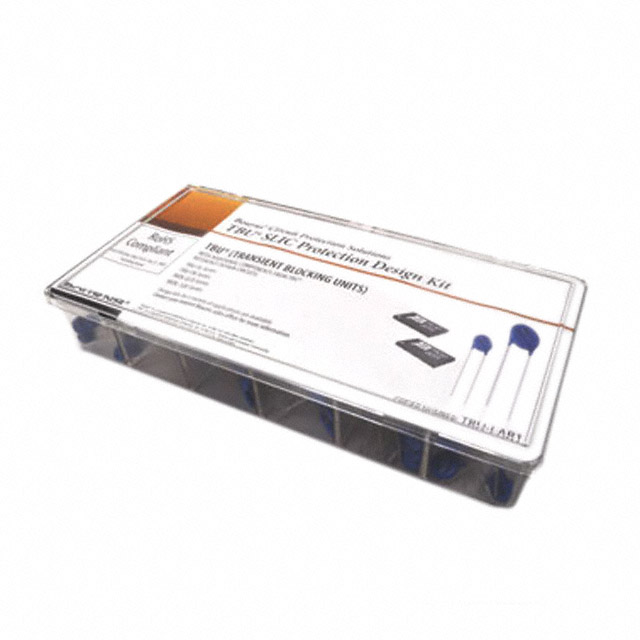

Bourns® TBU® SLIC protection TBU-LAB1 Design kit containing high-speed devices that provide protection against transients caused by short circuits, AC power cross, induction and lightning surges.
The Transient Blocking Unit TBU blocks surges providing a barrier to sensitive electronics and eliminating exposure to large voltages or currents during surge events. Consequently the let-through energy to sensitive load electronics is low and prevents damage within rated limits. The TBU device resets to its normal state after the surge subsides.
Extremely high-speed performance GHz data rate compatible
Blocks high voltages and transient currents
Very high bandwidth
Small size requires Minimal PCB area
Exceeds ITU-T K.20, K.21, K.45 & Telcordia GR-1089 requirements
Applications include: xDSL linecards; POTS and xDSL combo linecards; Access network equipment; T1/E1 and T3/E3 equipment; Ethernet port protection; Broadband modems and gateways; Industrial controls and sensors; Test and instrumentation equipment
### 内容
115 pcs - 17 values
