TLV49681TBXALA1

霍尔效应锁存

Description:

The TLV496x-xTA/B Hall sensor family comprises a line of Hall switches for contactless position sensing. The sensors are specially designed to provide an easy-to-use and cost effective solution for position sensing applications.

TLV496x-xTA/B Hall switch family is the ideal solution for all target applications which require a precise Hall switch or Hall latch unipolar/bipolar. With a wide operating temperature range as well as excellent magnetic behavior ’s switches are ideally suited for:

.

Index counting applications with a pole wheel

.

Rotor position detection in BLDC motors

.

Open/closing detection

Summary of Features:

.

3.0 V to 26 V operating supply voltage

.

Low current consumption 1.6 mA

.

ESD protection 4 kV HBM

.

Operating from unregulated power supply

.

Output overcurrent & overtemperature protection

.

Active error compensation chopping

.

High stability of magnetic thresholds

.

Operating temperature range from -40 °C to 125 °C

.

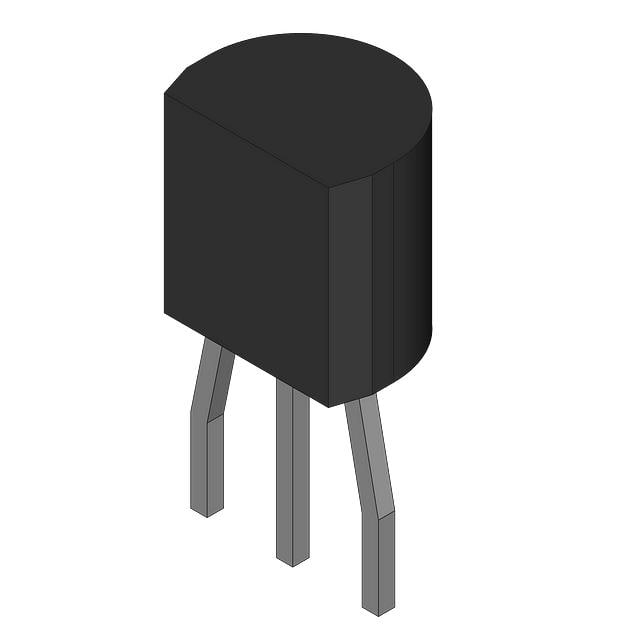

Leaded package PG-TO92S

.

JESD47 qualified
