TG165

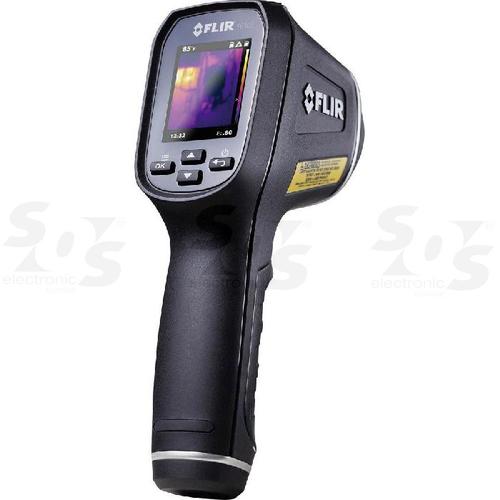

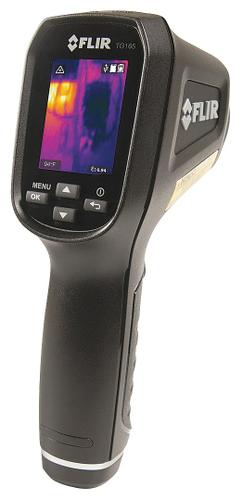

FLIR TG165 成像红外温度计FLIR TG165 成像红外温度计可轻松找到看不见的热点和冷点，以便及时诊断故障。 其可存储图像和数据，以包括中报告中。 配有 FLIR 的独家 Lepton® 微型热成像照相机。 TG165 可助您识别热模式，可靠地测量温度，并存储用于报告的图像和数据。 凭藉 24:1 的聚光比率，您可以从更安全的距离获取准确读数。 TG165 易于操作，具有直观的菜单图标和双激光笔。帧速率：9 Hz 图像分辨率：4800 像素 80 x 60 点大小比：24:1 显示屏类型：2" TFT LCD 测量分辨率：0.1°C / °F 温度范围：-25°C 至 +380°C，14°F 至 716°F 响应时间：150 ms 调色板：2（灰阶、热烫） 保存图像格式：位图 BMP 图像，带温度和发射率 通过 USB 或可拆卸 Micro SD 快速下载图像 结构可耐受 2 m 坠落 袖珍便携式，适合密集工具袋 ### 随附温度计，系索，USB 电缆，国际充电器 US, UK, EU, AU, CN，8 Gb Micro SD 卡，技术文档### 红外温度计

The is an Imaging Infrared Thermometer bridges the gap between single spot infrared thermometers and "s legendary thermal cameras. Equipped with FLIR"s exclusive Lepton® micro thermal sensor. It easily find unseen hot and cold spots for instant troubleshooting and store images and data to show customers and include in reports. Instantly shows what"s hot and where to aim, intuitive to operate with no special training required, easily save images and data for documentation, download images fast over USB or from removable micro SD. Built to withstand a 2m drop, compact and durable to easily stow in a crowded tool bag. Dual diverging lasers, frames temp measurement area.

.

Eliminates blind guesswork

.

24:1 Spot size ratio for safer distance measuring

.

150milliseconds Response time

.

8 to 14µm Spectral response

.

Integrated automatic shutter

.

8Gb Micro SD card memory

.

-10 to 45°C Operating temperature range
