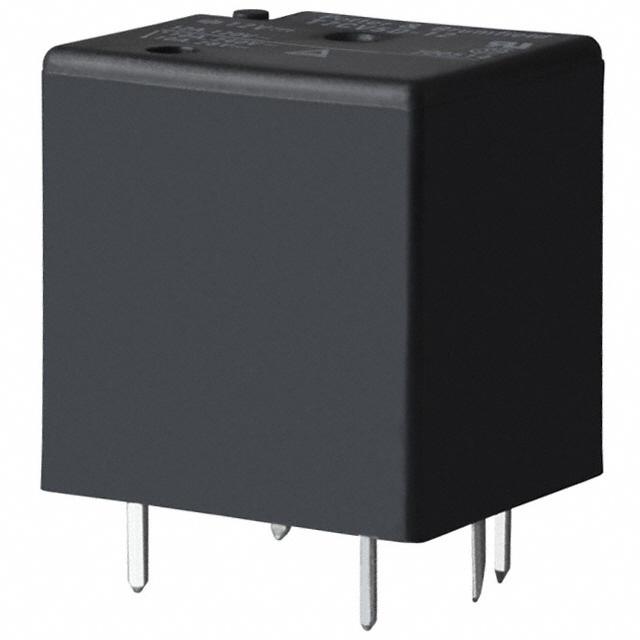

Power Relay 24VDC 10A SPST-NO 20.2mm 16.5mm 20.2mm Through Hole
Electromechanical Relay 24VDC 1.6KOhm 10A SPST-NO 20.2x16.5x20.2mm THT Power Relay
Product Highlights
T7C Series
Contact Arrangement = 1 Form A, SPST-NO, 1 N/O
Contact Current Rating = 12 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
得捷:
RELAY GEN PURPOSE SPST 12A 24V
艾睿:
Power Relay 24VDC 10A SPST-NO20.2x16.5x20.2mm THT
Chip1Stop:
Electromechanical Relay SPST-NO 10A 24VDC 1.6KOhm Through Hole
Verical:
Power Relay 24VDC 10A SPST-NO 20.2mm 16.5mm 20.2mm Through Hole
MASTER:
Electromechanical Relay 24VDC 1.6KOhm 10A SPST-NO 20.2x16.5x20.2mm THT Power Relay
Online Components:
Electromechanical Relay 24VDC 1.6KOhm 10A SPST-NO 20.2x16.5x20.2mm THT Power Relay
Electro Sonic:
Electromechanical Relay 24VDC 1.6KOhm 10A SPST-NO 20.2x16.5x20.2mm THT Power Relay
输入电压DC 24.0 V
触点类型 SPST-NO
触点额定电流 12.0 A
线圈电压 24 VDC
线圈电流 15 mA
线圈功率DC 360 mW
线圈电阻 1.6 KΩ
额定电流Max 10 A
线圈电压DC 24 V
额定电压DC Max 24 V
额定电压AC Max 240 V
安装方式 Through Hole
引脚数 4
长度 20.2 mm
宽度 16.5 mm
高度 20.2 mm
触点材质 Silver Cadmium Oxide
工作温度 -30℃ ~ 85℃
产品生命周期 Obsolete
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
T7CS1D-24 TE Connectivity 泰科 | 当前型号 | 当前型号 |
1-1393190-2 泰科 | 完全替代 | T7CS1D-24和1-1393190-2的区别 |
4-1393190-3 泰科 | 完全替代 | T7CS1D-24和4-1393190-3的区别 |
T7CV1D-24 泰科 | 类似代替 | T7CS1D-24和T7CV1D-24的区别 |
