T106D1

敏感的可控硅（ 0.8 A至10 A） Sensitive SCRs 0.8 A to 10 A

E5

General Description

The Teccor line of sensitive SCR semiconductors are half-wave unidirectional, gate-controlled rectifiers SCR-thyristor which complement Teccor"s line of power SCRs. This group of packages offers ratings of 0.8 A to 10 A, and 200 V to 600 V with gate sensitivities of 12 µA to 500 µA. For gate currents in the 10 mA to 50 mA ranges, see “SCRs” section of this catalog.

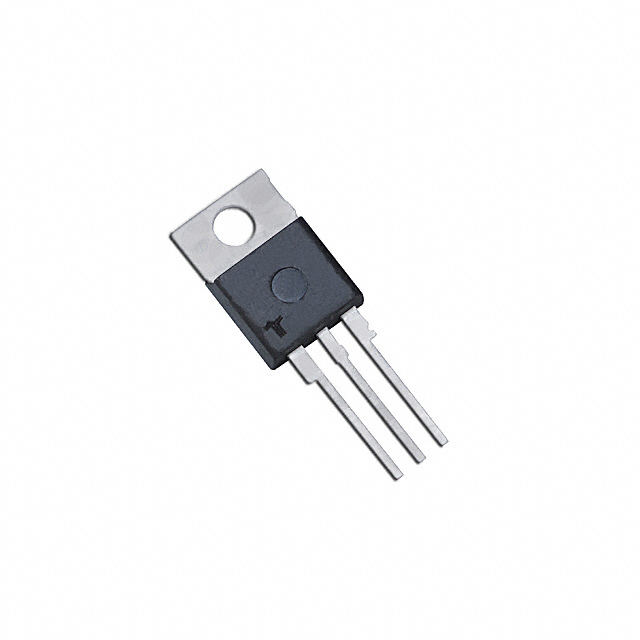

The TO-220 and TO-92 are electrically isolated where the case or tab is internally isolated to allow the use of low-cost assembly and convenient packaging techniques.

Features

• RoHS Compliant

• Electrically-isolated TO-220 package

• High voltage capability — up to 600 V

• High surge capability — up to 100 A

• Glass-passivated chip

Compak Features

• Surface mount package — 0.8 A series

• New small-profile three-leaded Compak package

• Four gate sensitivities available

• Packaged in embossed carrier tape with 2,500 devices per reel

• Can replace SOT-223
