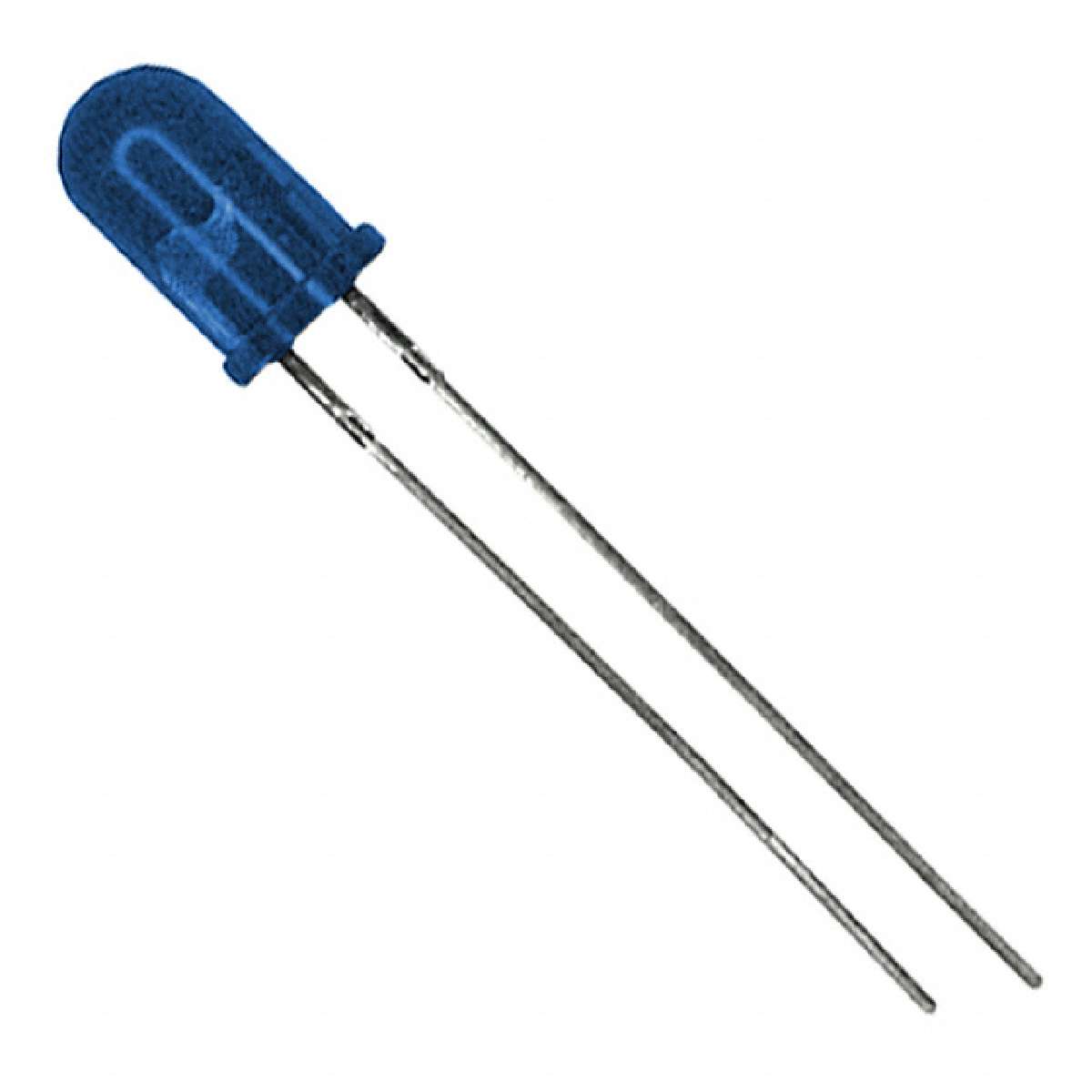

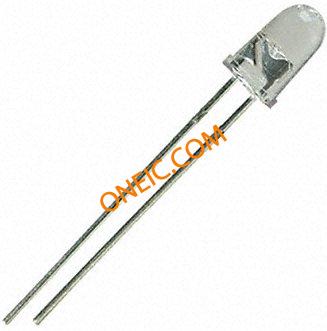

VISHAY TSAL6100 红外发射器, 高功率, 20 °, T-1 3/4 5mm, 100 mA, 2.6 V, 800 ns, 800 ns
The is a 2-pin high power Infrared Emitting Diode in GaAlAs multi quantum well MQW technology with high radiant power. It is suitable for high pulse current operation. It features good spectral matching with Si photodetectors, ±10° angle of half intensity and 940nm peak wavelength.
电源电压DC 1.60 V
额定电压DC 2.60 V
额定功率 210 mW
上升/下降时间 0.8 µs
针脚数 2
正向电压 1.35 V
波长 940 nm
视角 20°
峰值波长 940 nm
耗散功率 160 W
上升时间 800 ns
测试电流 100 mA
正向电流 100 mA
正向电压Max 2.6 V
正向电流Max 100 mA
下降时间 800 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 160 mW
安装方式 Through Hole
引脚数 2
封装 T-1

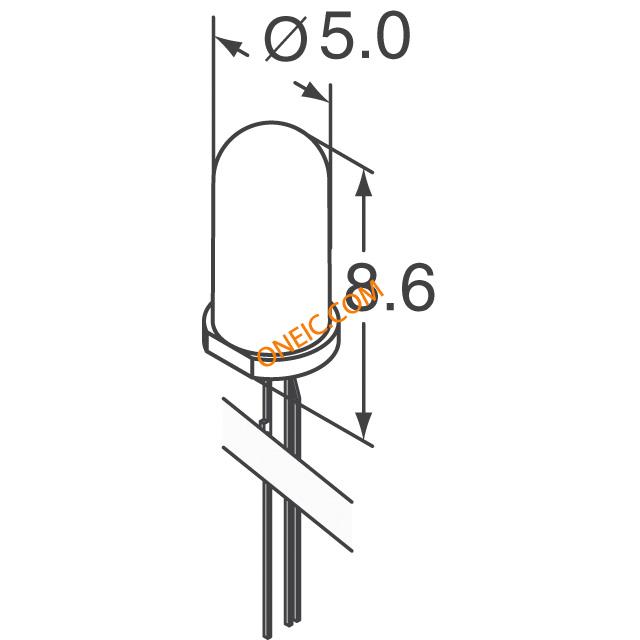

长度 5.8 mm
宽度 5.8 mm
高度 8.7 mm
脚长度 25.7 mm
封装 T-1
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 Sensing & Instrumentation, 传感与仪器, 发光二极管照明, LED Lighting, HVAC, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TSAL6100 VISHAY 威世 | 当前型号 | 当前型号 |
TSAL5100 威世 | 类似代替 | TSAL6100和TSAL5100的区别 |
