TPD1E01B04DPLR

适用于 USB Type-C™ 和 Thunderbolt 3 的单通道 ESD 保护二极管 2-X2SON -40 to 125

The TPD1E01B04 is a bidirectional TVS ESD protection diode array for USB Type-C and Thunderbolt 3 circuit protection. The TPD1E01B04 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard Level 4.

This device features a 0.18 to 0.20-pF typical IO capacitance making it ideal for protecting high-speed interfaces up to 20 Gbps such as USB 3.1 Gen2 and Thunderbolt 3. The low dynamic resistance and low clamping voltage ensure system level protection against transient events.

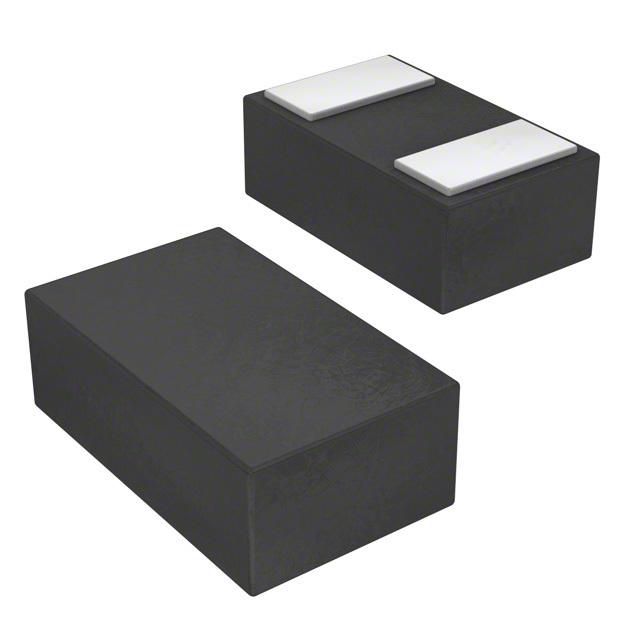

The TPD1E01B04 is offered in the industry standard 0201 DPL package and 0402 DPY packages.
