专业电源管理 PMIC Sink/Source DDR Termination Regulator 10-VSON -55 to 125
The TPS51200-EP device is a sink and source double data rate DDR termination regulator specifically designed for low-input voltage, low-cost, low-noise systems where space is a key consideration.
The TPS51200-EP maintains a fast transient response and only requires a minimum output capacitance of 20 µF. The TPS51200-EP supports a remote sensing function and all power requirements for DDR, DDR2, DDR3, Low-Power DDR3, and DDR4 VTT bus termination.
In addition, the TPS51200-EP provides an open-drain PGOOD signal to monitor the output regulation and an EN signal that can be used to discharge VTT during S3 suspend to RAM for DDR applications.

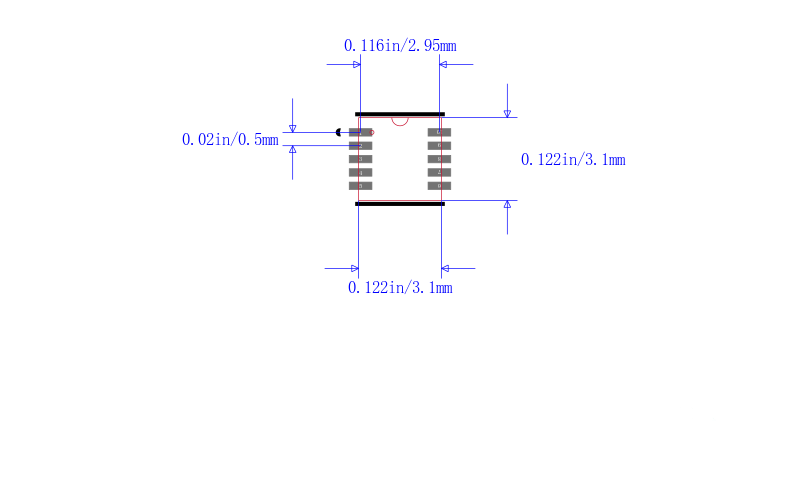

The TPS51200-EP is available in the thermally efficient 10-pin VSON thermal pad package, and is rated both Green and Pb-free. It is specified from –55°C to +125°C.
