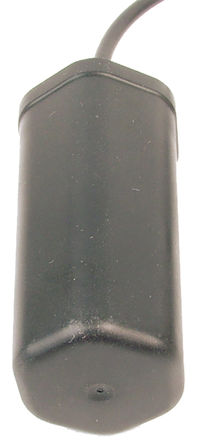

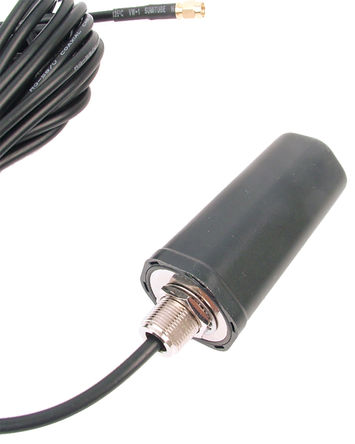

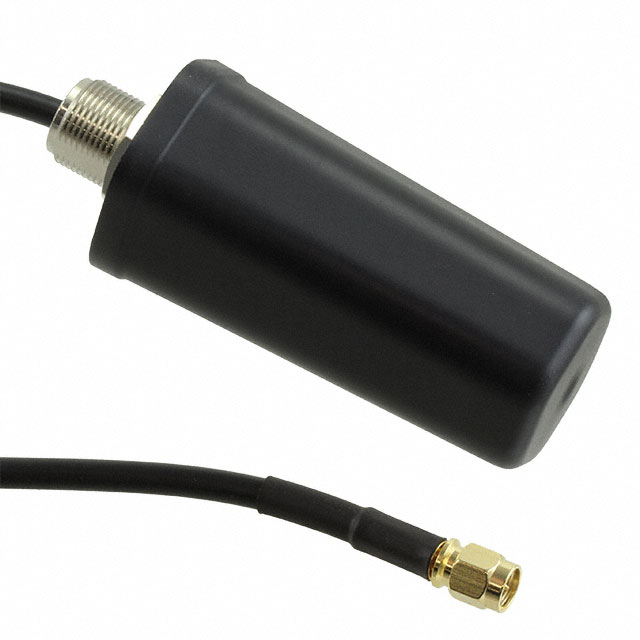

TANGO 41 - 4G/3G/2G/WiFi Bolt Through Antenna, SirettaThe TANGO 41 is a 4G/WiFi antenna which is equally capable of 3G and 2G frequencies. It can be positioned onto most surfaces including those which are not flat using it integral rubber washer. The TANGO 41 is similar to the TANGO 40 RS 124-8863 but can be bolted to thicker surfaces and has an integrated 2.5 metre RG58 cable with SMA male connector.SWR: Radiation: Omnidirectional Polarisation: Vertical **Frequency bands:** 698 MHz to 960 MHz @ 1 dBi gain 1710 MHz to 2170 MHz @ 3 dBi gain 2300 MHz to 2700 MHz @ 5 dBi gain **Mechanical information:** 39.8 mm diameter 77.9 mm length 16 mm diameter hole required for stud Max thickness of material to be mounted to - approximately 12 mm Rubber gasket provides reliable water sealing to mounted surface ### 多频段天线
829MHz，1.94GHz，2.5GHz WLAN 鞭状，直形 RF 天线 698MHz ~ 960MHz，1.71GHz ~ 2.17GHz，2.3GHz ~ 2.7GHz - SMA 公头 面板安装
得捷:
RF ANT 829MHZ/1.94GHZ WHIP STR
欧时:
TANGO 41 - 4G/3G/2G/WiFi 贯穿螺栓天线，SirettaTANGO 41 是 4G/WiFi 等同于 3G 和 2G 频率的天线。它可通过一体式橡胶垫圈定位在大多数表面上，包括不扁平的表面。 TANGO 41 与 TANGO 40 相似，但它可用螺栓固定到较厚的表面且具有集成式 2.5 米 RG58 电缆，带 SMA 公连接器。 TANGO41/1M/SMAM/S/S/32 - 1 m 天线 140-8064 TANGO41/5M/SMAM/S/S/33 - 5 m 天线 140-8065 TANGO41/2.5M/SMAM/S/S/32 - 2.5 m 天线 124-8862 SWR：< 3 辐射：全向 极化：垂直 **频带：** 698 Mhz 至 960 MHz @ 1 dBi 增益 1710 Mhz 至 2170 MHz @ 3 dBi 增益 2300 Mhz 至 2700 MHz @ 5 dBi 增益 **机械信息：** 39.8 mm 直径 77.9 mm 长度 螺柱需要 16 mm 直径孔 要安装的材料最大厚度 - 大约为 12 mm 橡胶衬垫可为安装表面提供可靠的防水密封。### 多频段天线，Siretta
